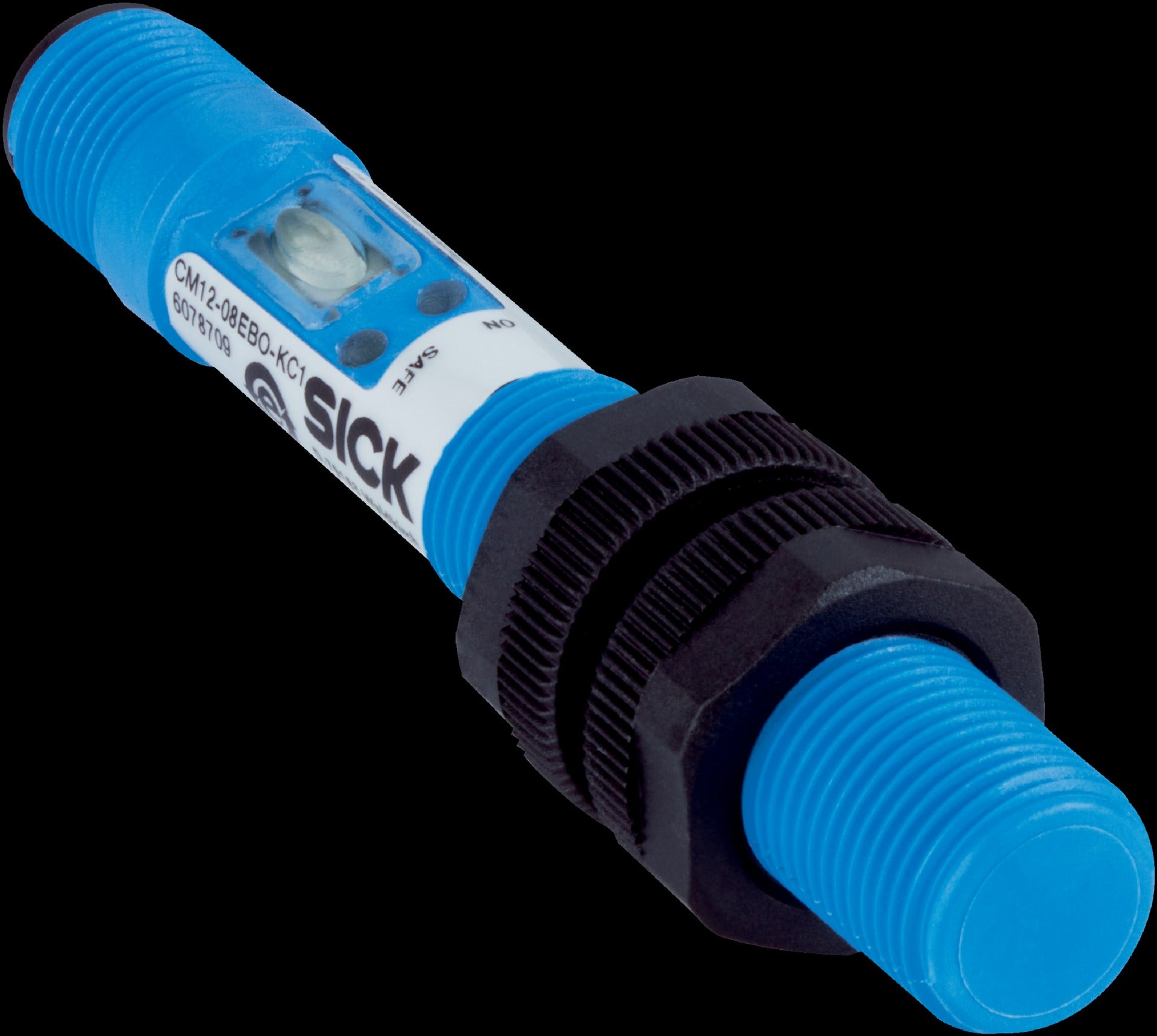

SICK Capacitive proximity sensors: CM CM12-08EBP-KC1

IMM00002072

Housing: Metric
Thread size: M12 x 1
Diameter: Ø 12 mm
Sensing range Sn: 0.5 mm ... 8 mm1)
0.5 mm ... 4 mm2)
Safe sensing range Sa: 5.76 mm
Installation type: Non-flush / flush3)
Switching frequency: 15 Hz
Connection type: Male connector M12, 4-pin
Switching output: PNP / NPN
Output function: Programmable
Output characteristic: Wire configurable4)
Electrical wiring: DC 4-wire
Adjustment: Teach-in button: Sensitivity
Wire/pin: Sensitivity
Enclosure rating: IP68 (According to EN 60529)5)
Items supplied: Mounting nut, PA12 plastic (2x)
