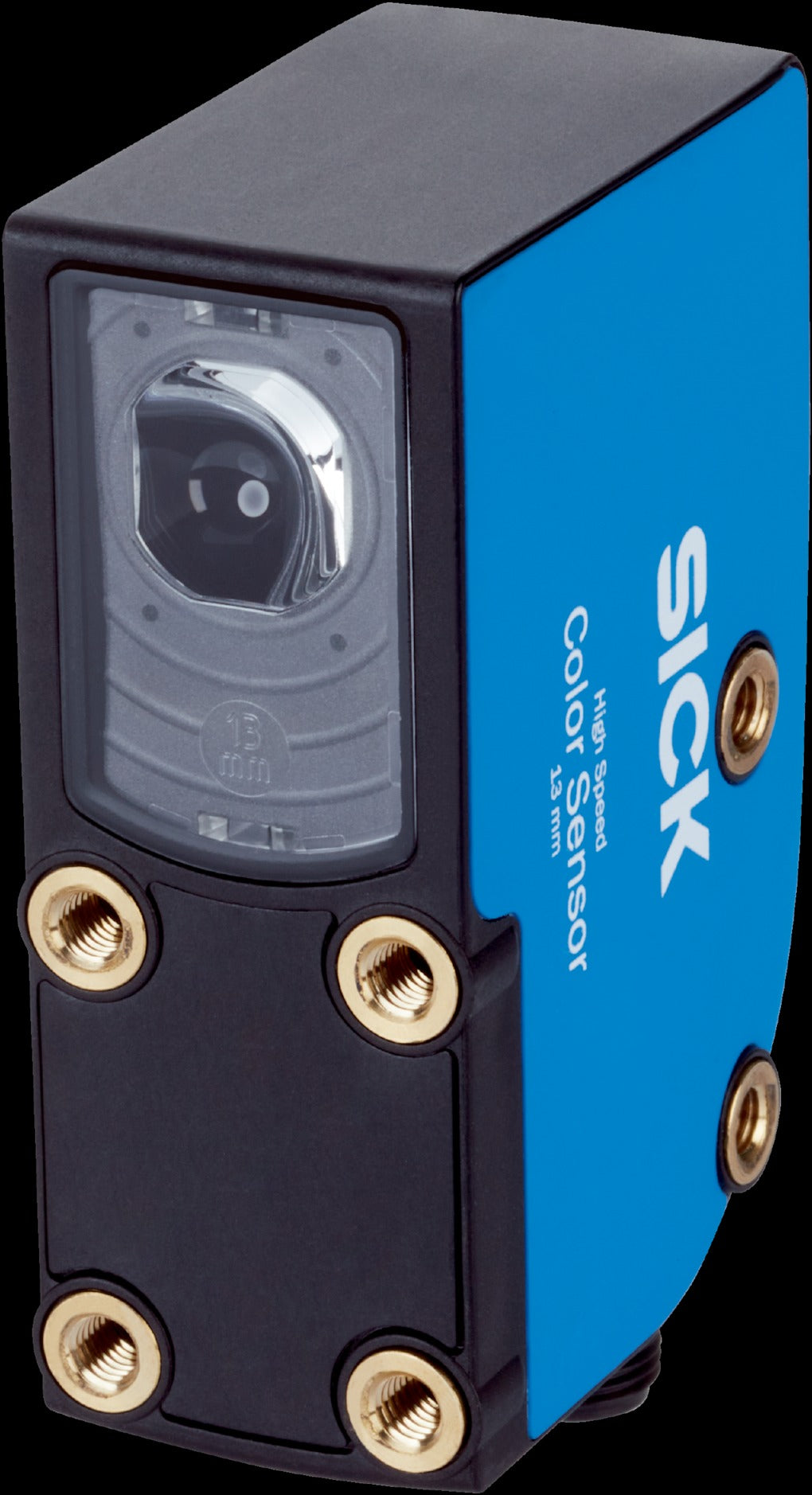

SICK Color sensors: CSS/CSX High Speed CSX-WBF114128AA10Z

IMM00002158

Dimensions (W x H x D): 30 mm x 53 mm x 78.5 mm
Sensing distance: 13 mm
Sensing distance tolerance: ± 5 mm
Housing design: X housing
Light source: LED, RGB1)
LED risk group marking: 1
Wave length: 460 nm, 530 nm, 625 nm
Light emission: Long side of housing
Light spot size: 2 mm x 4 mm
Light spot direction: Vertical2)
Teach-in mode: Single value teach-in, Multi value teach-in
Color mode: C (Color), C + I (Color + Illumination)
Output mode: 4 colors in standard mode/best fit mode, 15 colors in coded mode
Adjustment of the sensitivity: Continuous: 0 ... 999
Available job banks: 4
Output (channel): 4 x hardware switching outputs, 24 x virtual switching outputs via IO-Link
Parameter presettings: Pin 4 / pin 5: Preset configuration
