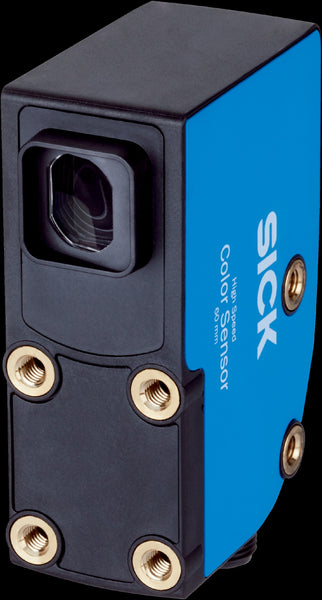

SICK Color sensors: CSS/CSX High Speed CSX-WNFA541282ZZZZ

IMM00002162

Dimensions (W x H x D): 30 mm x 53 mm x 78.5 mm
Sensing distance: 60 mm
Sensing distance tolerance: ± 9 mm
Housing design: X housing
Light source: LED, RGB1)
LED risk group marking: 1
Wave length: 460 nm, 530 nm, 625 nm
Light emission: Long side of housing
Light spot size: Ø 12 mm
Light spot direction: Round, large
Teach-in mode: Single value teach-in, Multi value teach-in
Color mode: C (Color), C + I (Color + Illumination)
Output mode: 4 colors in standard mode/best fit mode, 15 colors in coded mode
Adjustment of the sensitivity: Continuous: 0 ... 999
Available job banks: 4
Output (channel): 4 × hardware switching outputs
Parameter presettings: None
