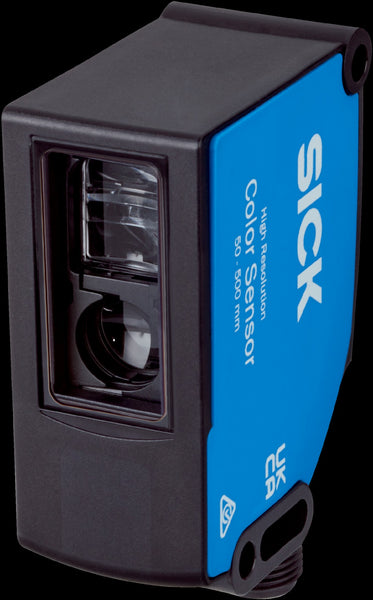

SICK Color sensors: CSS High Resolution CSS-WBGAD4118AA10Z

IMM00002154

Dimensions (W x H x D): 26 mm x 62 mm x 47.5 mm
Sensing distance: 50 mm ... 500 mm
Housing design: S housing
Light source: LED, RGB1)
LED risk group marking: 2
Wave length: 450 nm
Light emission: Long side of housing
Light spot size: Ø 8 mm ... 32 mm2)
Light spot direction: Round, large
Teach-in mode: Single value teach-in
Color mode: C (Color)
Output mode: 4 colors in standard mode/best fit mode
Adjustment of the sensitivity: Continuous: 0 ... 999
Available job banks: 4
Output (channel): 4 × hardware switching outputs
Parameter presettings: None
