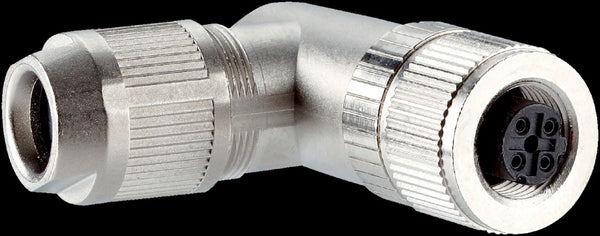

SICK Connectors and cable assemblies: Field-wireable connectors DOS-1204-WZ

SAS00005814

Product Specifications

Connection type head A Female connector, M12, 4-pin, angled, D-coded
Connection type IDC quick connection
Locking nut material Die-cast zinc
Cable CAT5, CAT5e
Shielding Shielded
Permitted cross-section 0.14 mm² ... 0.34 mm²
Reference voltage ≤ 60 V
Current loading 1.75 A
Signal type PROFINET
Enclosure rating IP67
Description Head A: female connector, M12, 4-pin, angled, D-coded, shielded, for cable diameter 4 mm ... 8 mm
Operating temperature
