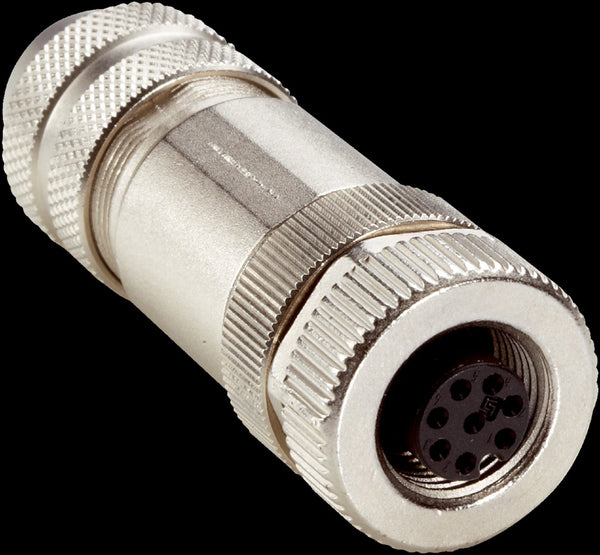

SICK Connectors and cable assemblies: Field-wireable connectors DOS-1208-GA

SAS00005823

Product Specifications

Connection type head A Female connector, M12, 8-pin, straight, A-coded
Connection type Screw-type terminals
Connector material Zinc die-cast, nickel-plated
Connector color Silver
Locking nut material CuZn
Shielding Shielded
Permitted cross-section 0.25 mm² ... 0.5 mm²
Reference voltage ≤ 60 V
Current loading 2 A
Authorizations UL
Enclosure rating IP67
Operating temperature (Head) –40 °C ... +85 °C
