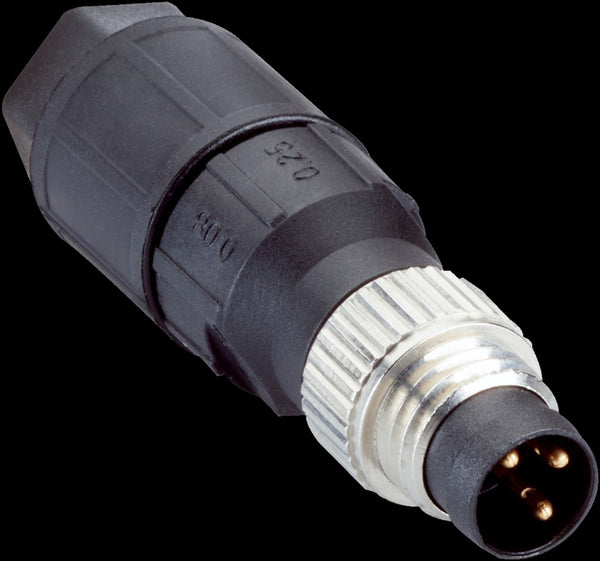

SICK Connectors and cable assemblies: Field-wireable connectors YM08U13-0002K1823A

SAS00006390

Connection type head A Male connector, M8, 3-pin, straight, A-coded
Connection type IDC quick connection
Locking plug connector Screw connection
Connector material PA
Connector color Black
Locking nut material Nickel-plated brass
Seal material NBR
Tightening torque 0.2 Nm
Width across flats 9
Cable diameter 1.9 mm
Permitted cross-section 0.08 mm² ... 0.25 mm²
Reference voltage ≤ 48 V AC, ≤ 60 V DC
Current loading ≤ 4 A
Signal type Sensor/actuator cable
Enclosure rating IP67
