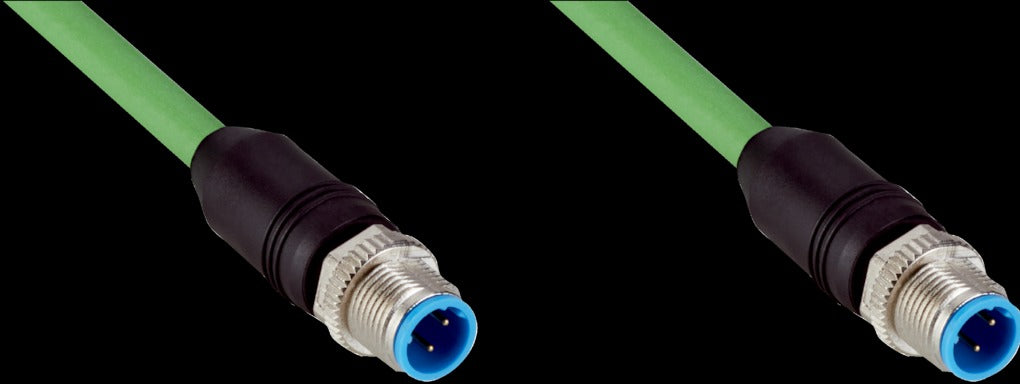

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YM2D24-010PN1M2D24

SAS00006399

Connection type head A Male connector, M12, 4-pin, straight, D-coded
Connection type head B Male connector, M12, 4-pin, straight, D-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 1 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Green
Cable diameter 6.7 mm
Conductor cross section 0.34 mm²
Shielding Shielded
