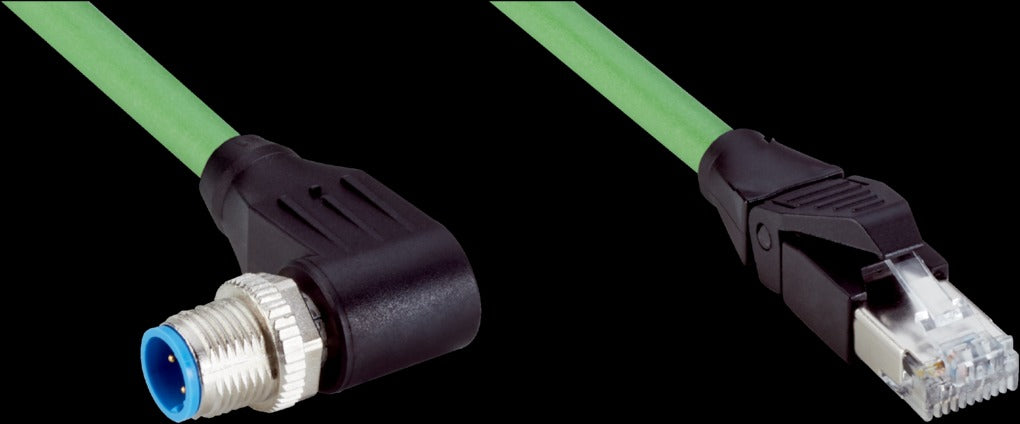

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YN2D24-020PN1MRJA4

SAS00005857

Product Specifications

Connection type head A Male connector, M12, 4-pin, angled, D-coded
Connection type head B Male connector, RJ45, 4-pin, straight
Locking plug connector Screw-on connection (M12), snap-in locking (RJ45)
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 2 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Green
Cable diameter 6.7 mm
Conductor cross section 0.34 mm²
