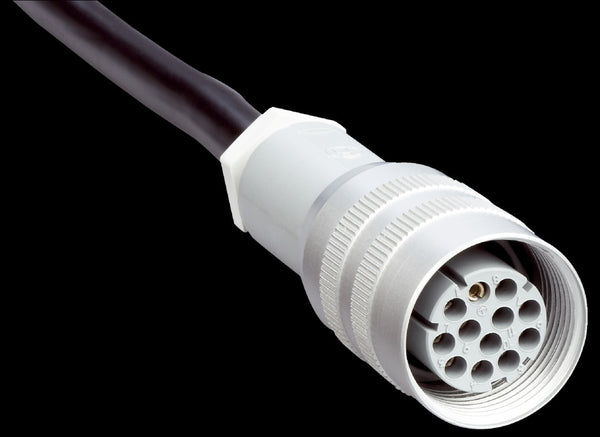

SICK Connectors and cable assemblies: Sensor/actuator cable DOL-0612G05M075KM0

SAS00005941

Connection type head A Female connector, M26, 12-pin, straight
Connection type head B Flying leads
Connection type Flying leads
Connector material PET
Connector color Gray, silver
Cable 5 m, 12-wire, PVC
Jacket material PVC
Jacket color Black
Cable diameter 10 mm
Conductor cross section 0.75 mm²
Shielding Unshielded
Reference voltage ≤ 60 V AC/DC
Current loading 5 A
Signal type Sensor/actuator cable
Authorizations UL – Approbation Style 2464
Enclosure rating IP65 (EN 60529)
Operating temperature (Flexible use) –5 °C ... +80 °C
Operating temperature (Stationary position) –30 °C ... +80 °C
Operating temperature (Head) –40 °C ... +90 °C
