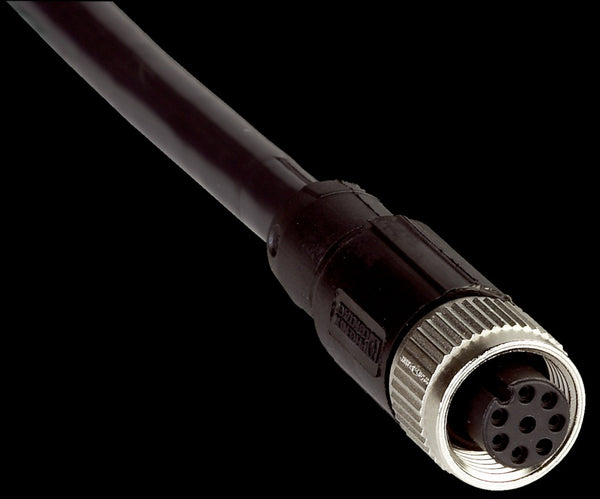

SICK Connectors and cable assemblies: Sensor/actuator cable DOL-1208G05MD25KM1

SAS00005650

Connection and Cable Specifications

Connection type head A Female connector, M12, 8-pin, straight, A-coded
Connection type head B Flying leads
Connection type Flying leads
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Cable 5 m, 8-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 5.9 mm
Conductor cross section 0.25 mm²
