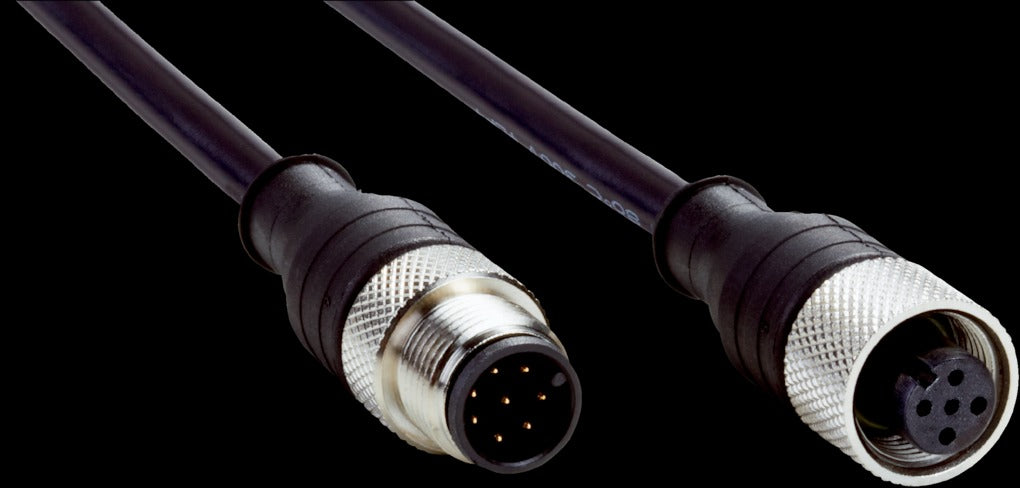

SICK Connectors and cable assemblies: Sensor/actuator cable DSL-1258-G0M1C

SAS00005948

Connection type head A Female connector, M12, 5-pin, straight
Connection type head B Male connector, M12, 8-pin, straight
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Cable 0.1 m, 5-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 5 mm
Conductor cross section 0.34 mm²
Shielding Unshielded
