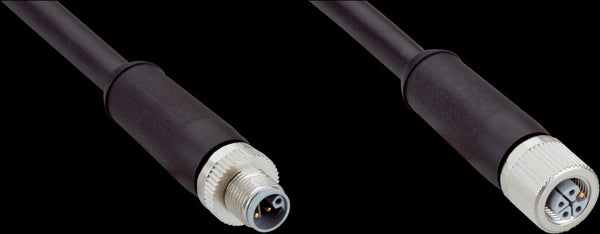

SICK Connectors and cable assemblies: Sensor/actuator cable YF2L15-010UK1M2L15

SAS00006542

Connection type head A Female connector, M12, 5-pin, straight, L-coded
Connection type head B Male connector, M12, 5-pin, straight, L-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 17
Cable 1 m, 5-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 9.5 mm
Conductor cross section 2.5 mm²
Shielding Unshielded
