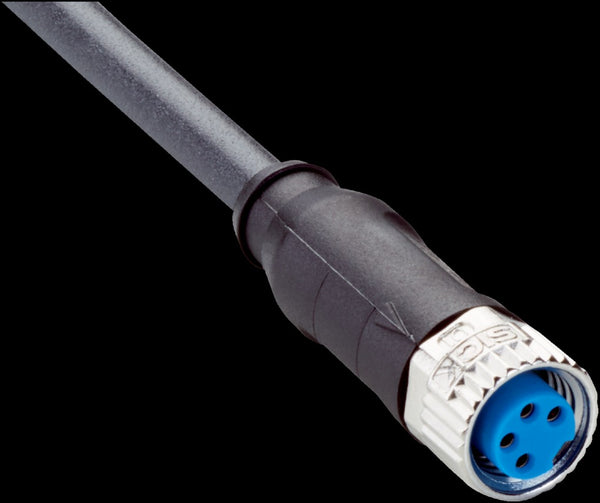

SICK Connectors and cable assemblies: Sensor/actuator cable YF8U14-100UA3XLEAX

SAS00005778

Product Specifications

Connection type head A Female connector, M8, 4-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.4 Nm
Width across flats 9
Cable 10 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.5 mm
Conductor cross section 0.25 mm²
