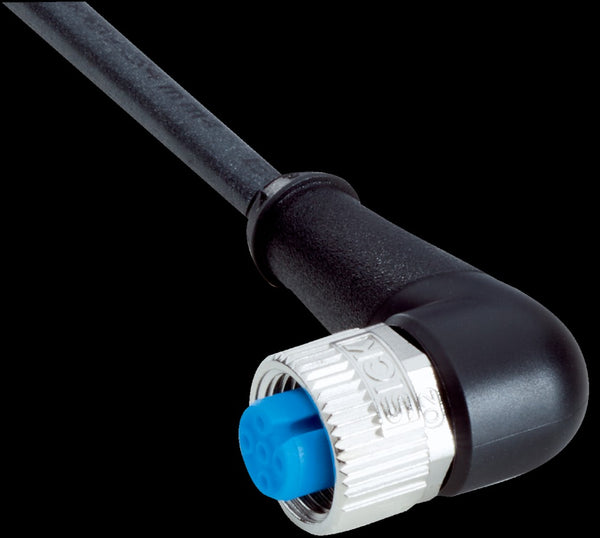

SICK Connectors and cable assemblies: Sensor/actuator cable YG2A15-050UB5XLEAX

SAS00005773

Product Specifications

Connection type head A Female connector, M12, 5-pin, angled, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 5-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.8 mm
Conductor cross section 0.34 mm²
