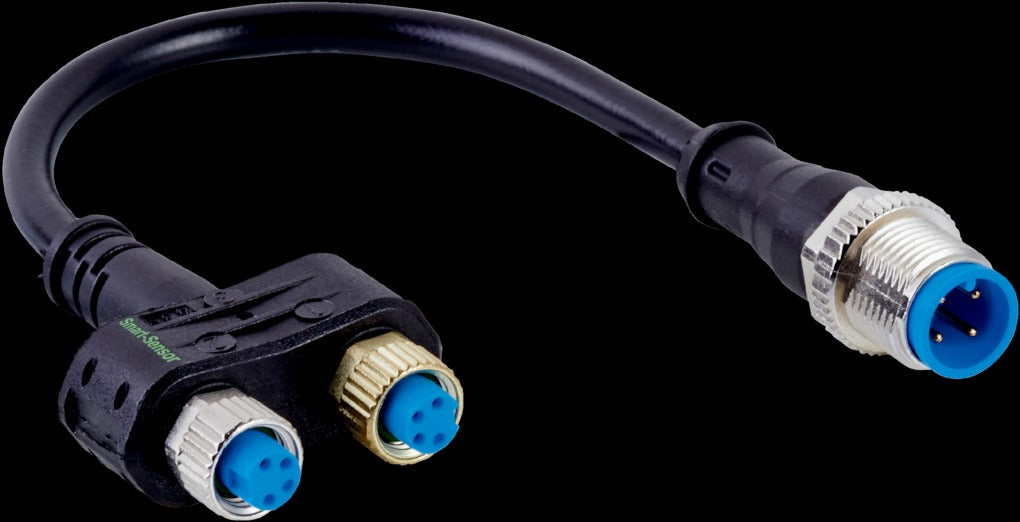

SICK Connectors and cable assemblies: Y- and T-splitters SYL-8204-G0M11-X2

SAS00006064

Connection type head A Male connector, M12, 4-pin, A-coded
Connection type head B Female connector, M8, 4-pin, A-coded
Connection type head C Female connector, M8, 4-pin, A-coded
Signal type Sensor/actuator cable
Connecting cable 0.11 m, PVC
Cable material PVC
Conductor cross section 0.34 mm²
Material knurled screw head A Zinc die-cast, nickel-plated
Material knurled screw head C Zinc die-cast, nickel-plated
Width across flats 9 (M8), 13 (M12)
Tightening torque 0.4 Nm (M8), 0.6 Nm (M12)
Shielding, head Unshielded
Reference voltage ≤ 30 V DC
Rated impulse voltage 0.8 kV
Current loading ≤ 4 A
Contamination rating 3
Note Slimline T-piece, 2 x M8 female connectors + M12 male connector with cable
Operating temperature –5 °C ... +80 °C, flexible use
–30 °C ... +80 °C, stationary position
Enclosure rating IP67
Description Y-distribution, 2 x M8 female connectors, 4-pin, straight, 0.11 m, PVC cable, 1 x M12 male connector, 4-pin, straight, connects a SICK sensor to a SICK Smart sensor; Female connector brassed (A): Auxiliary sensor; Female connector nickel-plated (B): Smart Sensor; Male connector nickel-plated (C): IO-Link master/ PLC
