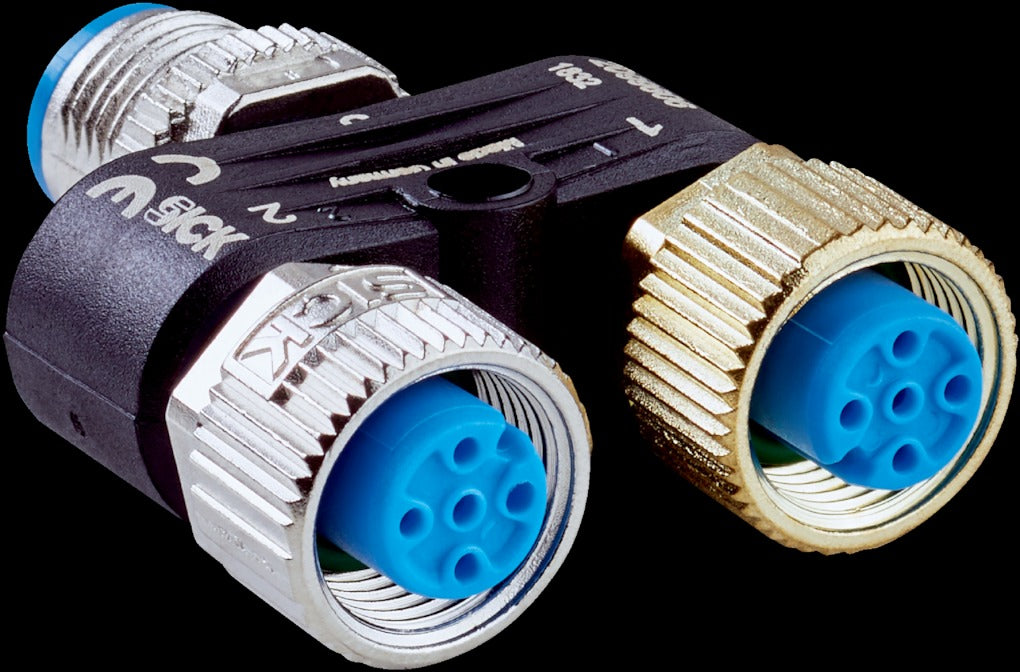

SICK Connectors and cable assemblies: Y- and T-splitters YM2A15-000S01FY2A4

SAS00005916

Product Specifications

Connection type head A Male connector, M12, 5-pin, A-coded
Connection type head B Female connector, M12, 4-pin, A-coded
Connection type head C Female connector, M12, 4-pin, A-coded
Locking plug connector Screw connection
Signal type Sensor/actuator cable
Connector material head A TPU
Connector material head C TPU
Material knurled screw head A Zinc die-cast, nickel-plated
Material knurled screw head B Zinc die-cast, nickel-plated
Material knurled screw head C Zinc die-cast, nickel-plated
Width across flats 13
Tightening torque 0.6 Nm
Shielding, head Unshielded
Rated impulse voltage 1.5 kV
Current loading ≤ 4 A
Insulation resistance 100 MΩ
Contamination rating 3
Overvoltage category III
Specific insulation resistance 30 mΩ
Enclosure rating IP65 / IP66K / IP67
