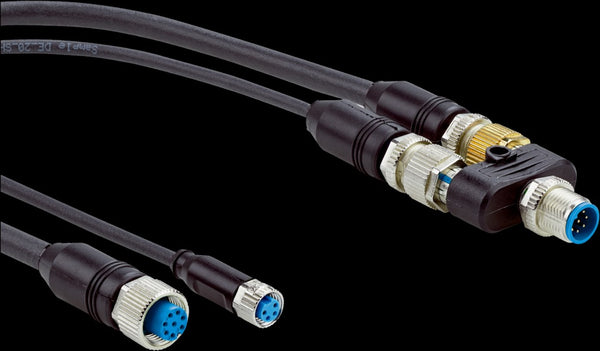

SICK Connectors and cable assemblies: Y- and T-splitters YM2A28-C20S01MYAAX

SAS00006257

Connection type head A Female connector, M12, 8-pin, straight, A-coded
Connection type head B Male connector, M12, 8-pin, straight, A-coded
Connection type head C Female connector, M8, 4-pin, A-coded
Signal type Sensor/actuator cable
Connecting cable 0.2 m
Conductor cross section 0.25 mm²
Material knurled screw head A Zinc die-cast, nickel-plated
Material knurled screw head C Zinc die-cast, nickel-plated
Tightening torque 0.4 Nm (M8), 0.6 Nm (M12)
Shielding, head Shielded
Reference voltage ≤ 30 V DC
Rated impulse voltage 0.8 kV
Current loading ≤ 2 A
Contamination rating 3
Items supplied Cable A: YM2A28-C20UA6F2A28 (6079346), cable B: YM2A18-C20UA3F8U14 (6079404), Y-distributor: YM2A28-000000FY2A8 (2123351)
Operating temperature –25 °C ... +80 °C, flexible use
Enclosure rating IP67
Description Y-distribution, 1 x female connector M12, 8-pin, straight, 1 x male connector M12, 8-pin, straight, 1 x female connector M8, 4-pin, straight, 0.2 m PUR cable for providing trigger signal for NCV50
