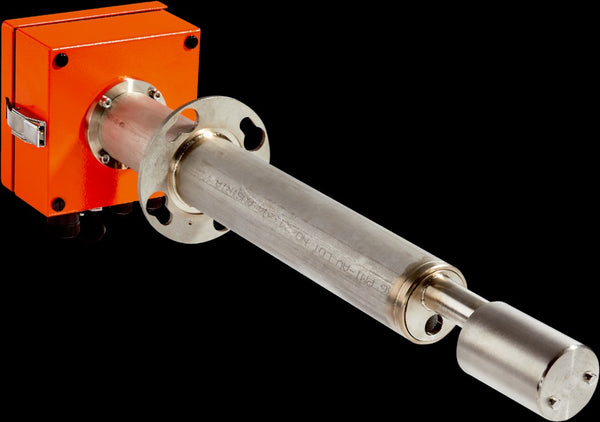

SICK Dust Measuring Devices: DUSTHUNTER SP30 DHSP30-T2V1FNNLMNNXXS

SAS00006600

Measured Values Scattered light intensity, dust concentration (after gravimetric comparison measurement)
Measurement Principles Scattered light forward
Spectral Range 640 nm ... 660 nm
Laser Protection class 2, power < 1 mW
Dimensions (W x H x D) 173 mm x 167.5 mm x 645 mm (for details see dimensional drawings)
Nominal Length 435 mm
Weight ≤ 5 kg
Mounting Flange with tube
Energy Supply Voltage: 24 V DC
Power consumption: ≤ 4 W
