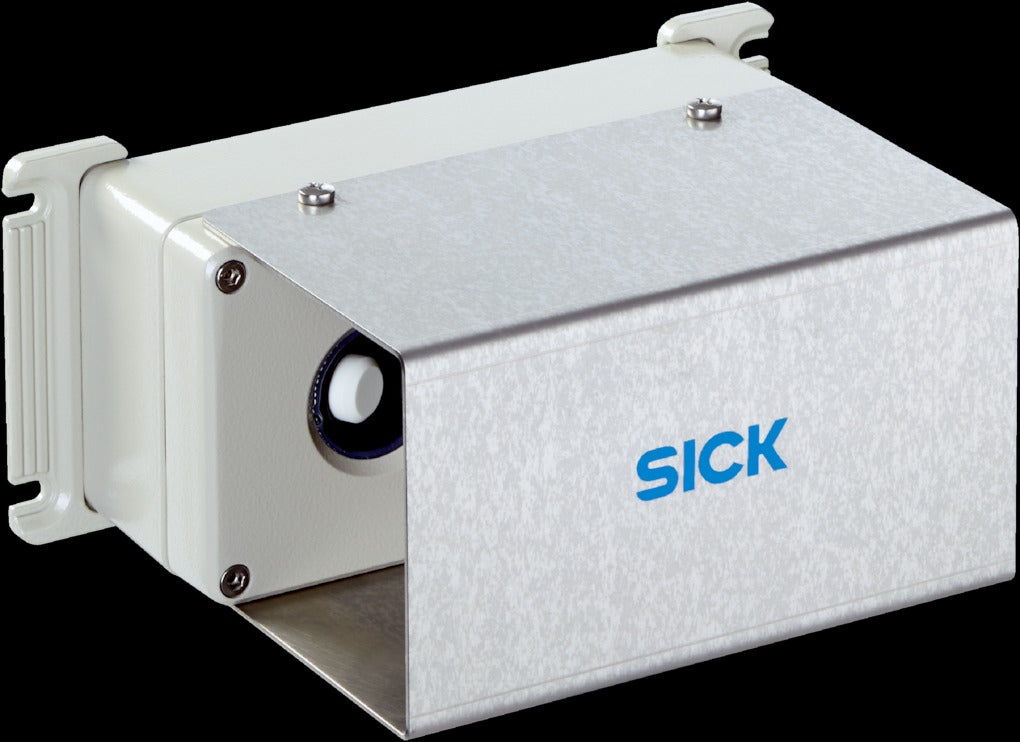

SICK Flow measurement instruments: VM400 VM400

SAS00006662

Measured values Air velocity, Direction of flow, temperature
Measurement principle Ultrasonic transit time difference measurement
Measuring ranges Air velocity: –20 ... 20 m/s
Accuracy < 5 m/s: ± 0.1 m/s
> 5 m/s: ± 2 %
Ambient temperature –30 °C ... +60 °C
Storage temperature –30 °C ... +60 °C
Ambient humidity ≤ 95 % Relative humidity
Conformities RABT 2006, RVS 09.02.22
Electrical safety CE
Enclosure rating IP66 / IP67
Analog outputs 1 output: 4 ... 20 mA, + 750 Ω, Electrically isolated
Digital outputs 2 NO: 48 V, 500 mA
Serial ✔
Type of fieldbus integration RS-232
Function Proprietary service interface
Ethernet ✔
Function Connection to SOPAS ET software
Dimensions (W x H x D) For details see dimensional drawings
Weight 1.4 kg
Material Aluminum
Electrical connection Voltage: 24 V
Power consumption ≤ 3 W
