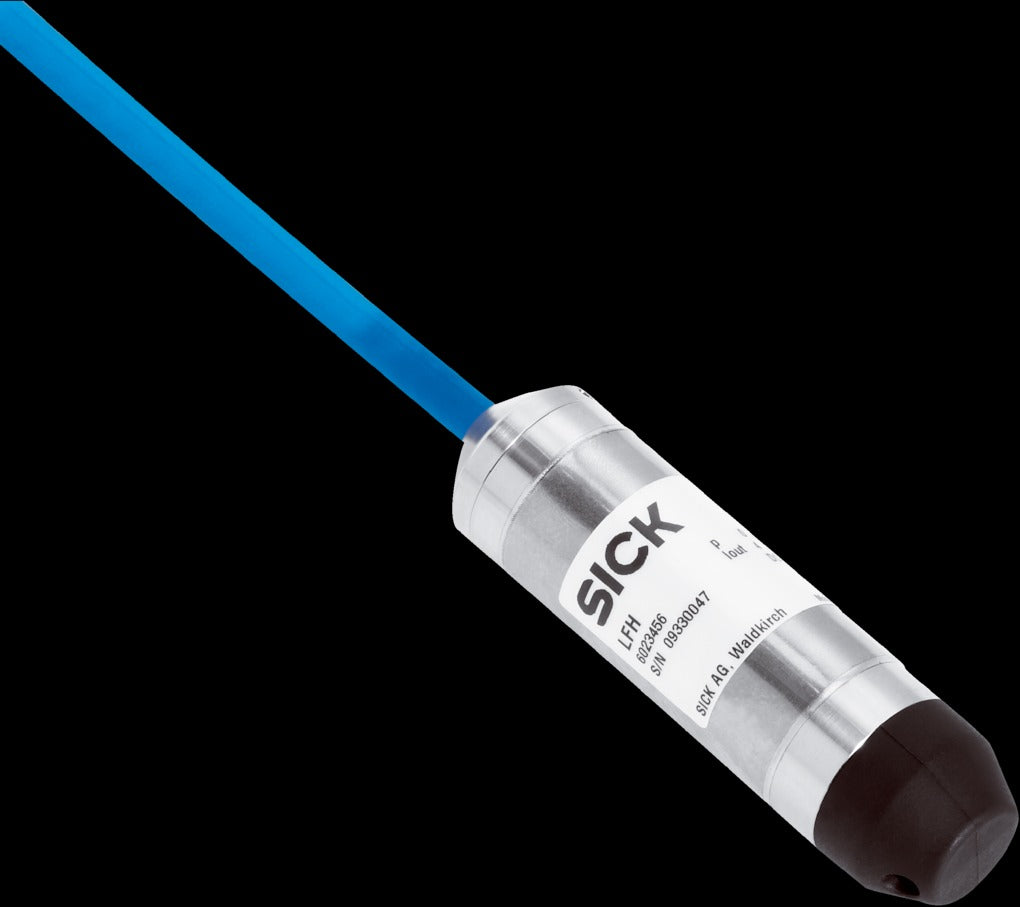

SICK Pressure sensors: LFH LFH-SB1X6G1AS20SZ0

SAS00007553

Medium Fluids
Pressure type Gauge pressure
Pressure unit bar
Measuring range 0 bar ... 1.6 bar
Process temperature –10 °C ... +50 °C
Maximum ohmic load RA 4 mA ... 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm]
0 V ... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm
0 V ... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm
Output signal 4 mA ... 20 mA, 2-wire
Length of cable 20 m
Cable material PUR (tensile strength 1000 N), FEP optional available (tensile strength 500 N)
Medium Fluids
Pressure type Gauge pressure
Pressure unit bar
Measuring range 0 bar ... 1.6 bar
Process temperature –10 °C ... +50 °C
Maximum ohmic load RA 4 mA ... 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm]
0 V ... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm
0 V ... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm
Output signal 4 mA ... 20 mA, 2-wire
Length of cable 20 m
Cable material PUR (tensile strength 1000 N), FEP optional available (tensile strength 500 N)
