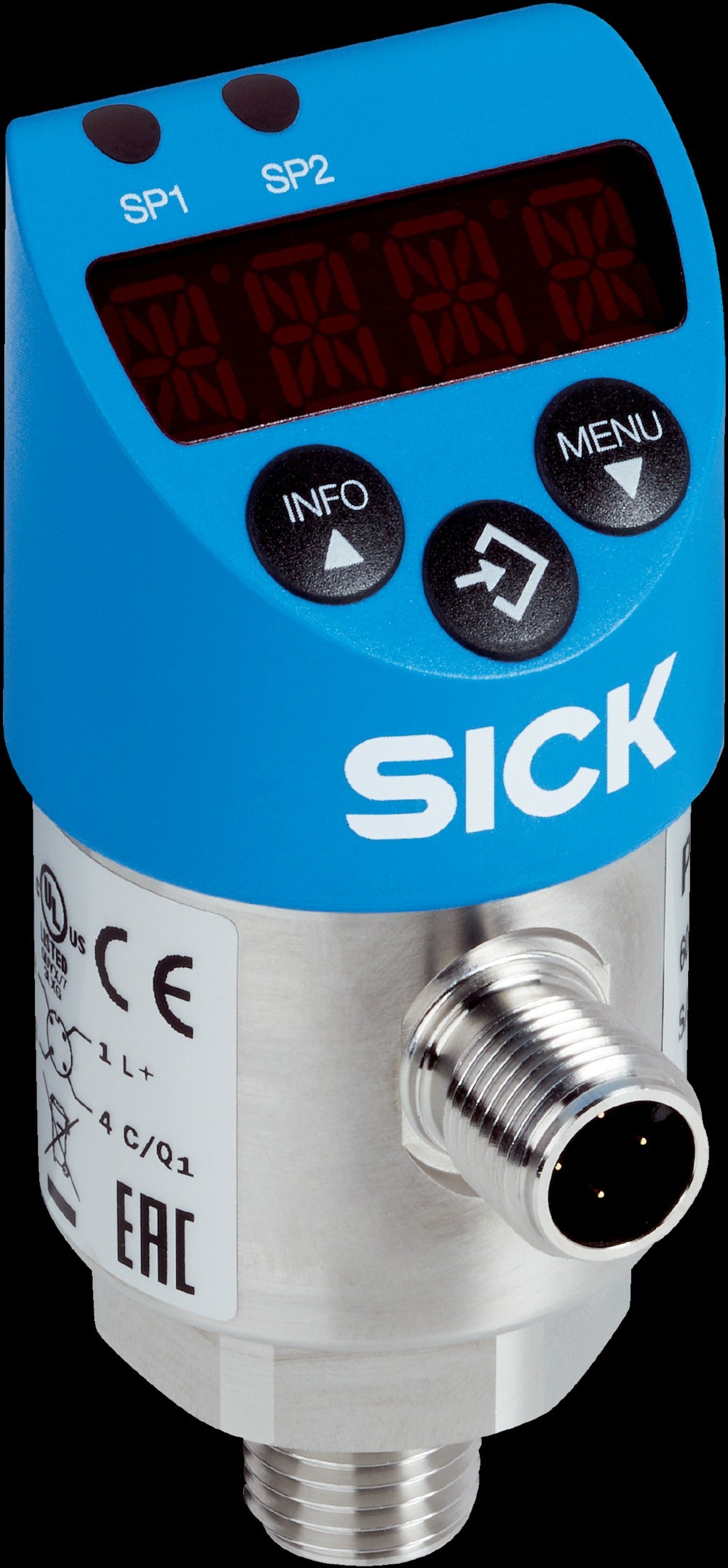

SICK Pressure sensors: PBS plus PBS2-RB010SN1SS0NMA0Z

SAS00011491

Attribute Value
Medium Liquid, gaseous
Pressure type Gauge pressure
Pressure unit bar
Measuring range 0 bar ... 25 bar
Overpressure safety 2-fold
Process temperature –20 °C ... +100 °C, +135 °C for max. 1 h
Pressure port 3.5 mm Standard
Housing material Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC
Connection type M12 round connector x 1, 4-pin
Supply voltage 15 V DC ... 35 V DC
Power consumption 45 mA (for configurations without analog output signal)
70 mA (for configurations with analog output signal)
Total current consumption Max. 600 mA (including switching current)
