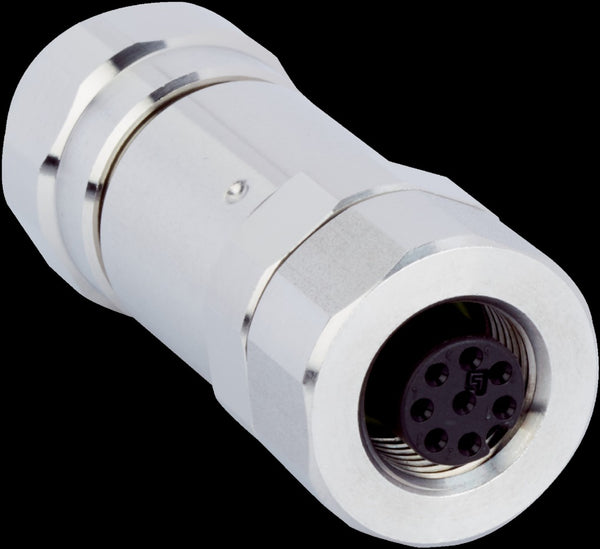

SICK Connectors and cable assemblies: Field-wireable connectors YF12ES8-0050S5586A

SAS00006057

Connection type head A Female connector, M12, 8-pin, straight, A-coded
Connection type Screw-type terminals
Connector material Stainless steel (V4A/1.4404/316L)
Connector color Silver
Locking nut material Stainless steel (V4A/1.4404)
Tightening torque 0.6 Nm
Conductor cross section 0.5 mm²
Shielding Shielded
Permitted cross-section 0.25 mm² ... 0.5 mm²
Reference voltage ≤ 30 V AC/DC
