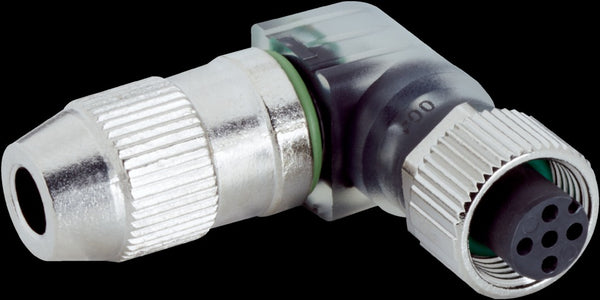

SICK Connectors and cable assemblies: Field-wireable connectors YI12U14-2550K4051A

SAS00005990

Connection type head A Female connector, M12, 4-pin, angled, A-coded
Connection type IDC quick connection
Locking plug connector Screw connection
Connector material TPU
Connector color Transparent
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM / PUR
Tightening torque 0.6 Nm
Width across flats 13
Permitted cross-section 0.25 mm² ... 0.5 mm²
Reference voltage 24 V DC
Rated impulse voltage 0.8 kV
Current loading 4 A
Signal type Sensor/actuator cable
Application Zones with oils and lubricants
Authorizations CE
Enclosure rating IP67
