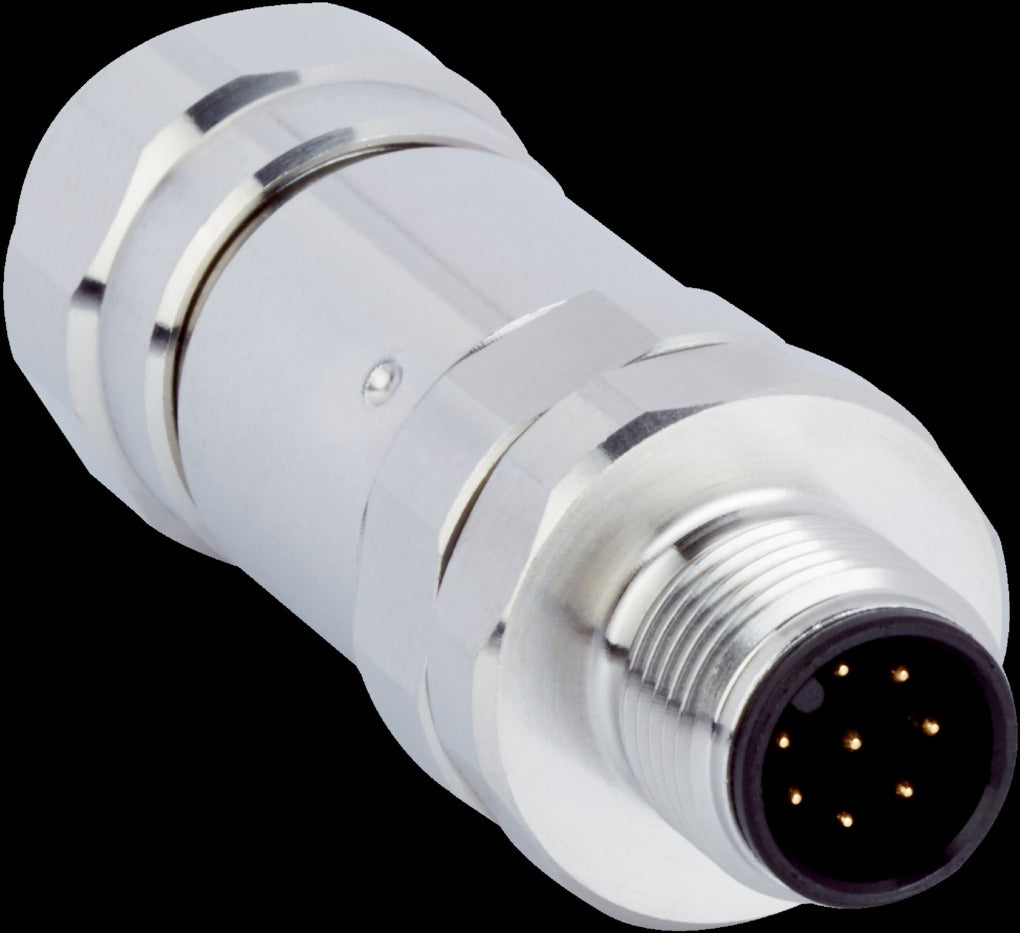

SICK Connectors and cable assemblies: Field-wireable connectors YM12ES8-0050S5586A

SAS00006069

Connection type head A Male connector, M12, 8-pin, straight, A-coded
Connection type Screw-type terminals
Connector material Stainless steel (V4A/1.4404)
Connector color Silver
Locking nut material Stainless steel (V4A/1.4404)
Conductor cross section 0.5 mm²
Shielding Shielded
Permitted cross-section ≤ 0.5 mm²
Reference voltage ≤ 60 V
Current loading 2 A
Application Hygienic and washdown zones
Authorizations UL
Enclosure rating IP69K
Operating temperature Head: –40 °C ... +85 °C
Contamination rating 3
Overvoltage category II
