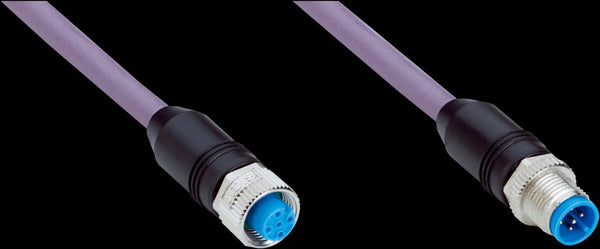

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YF2A15-010C1BM2A15

SAS00006277

Connection type head A Female connector, M12, 5-pin, straight, A-coded
Connection type head B Male connector, M12, 5-pin, straight, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 1 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Violet
Cable diameter 6.9 mm
Conductor cross section 0.25 mm² + 0.35 mm² + 1 x drain wire
