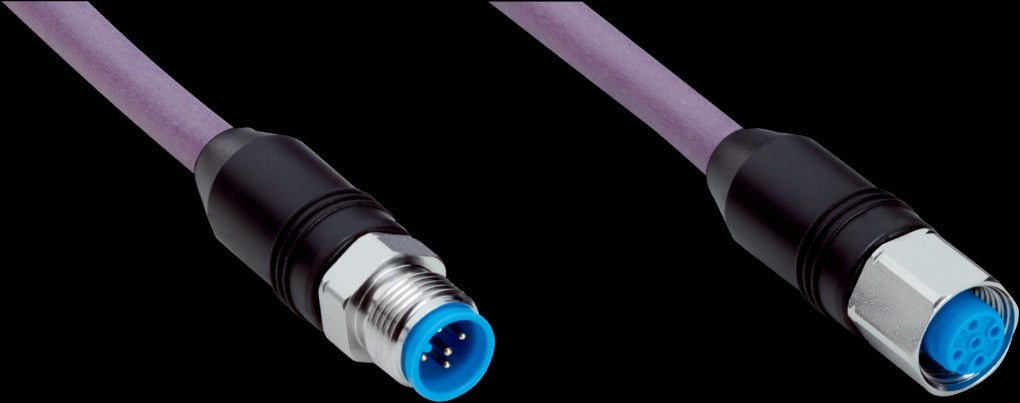

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YF2A55-020C1BM2A55

SAS00005852

Product Specifications

Connection type head A Female connector, M12, 5-pin, straight, A-coded
Connection type head B Male connector, M12, 5-pin, straight, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Stainless steel (V4A/1.4404)
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 2 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Violet
Cable diameter 6.9 mm
Conductor cross section 2 x 0.25 mm² + 2 x 0.34 mm²
