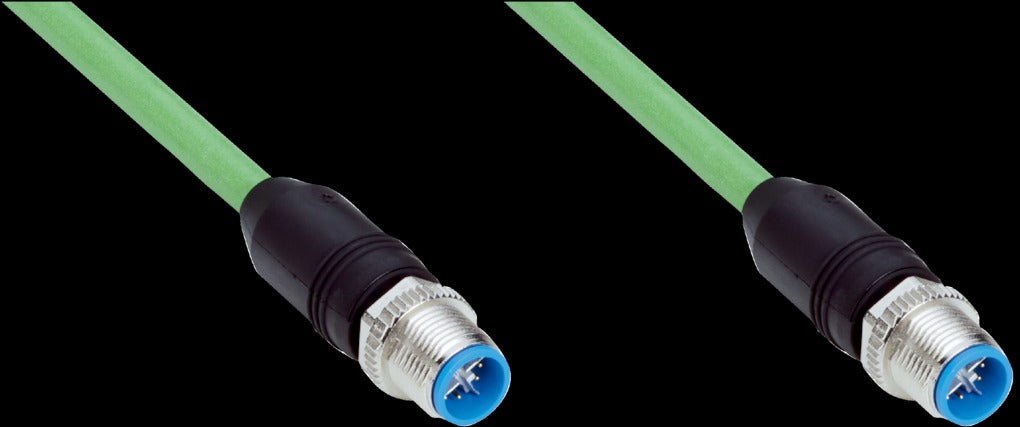

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YM2X18-030EG1M2X18

SAS00006249

Connection type head A Male connector, M12, 8-pin, straight, X-coded
Connection type head B Male connector, M12, 8-pin, straight, X-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 3 m, 8-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Green
Cable diameter 6.4 mm
Conductor cross section 0.14 mm²
