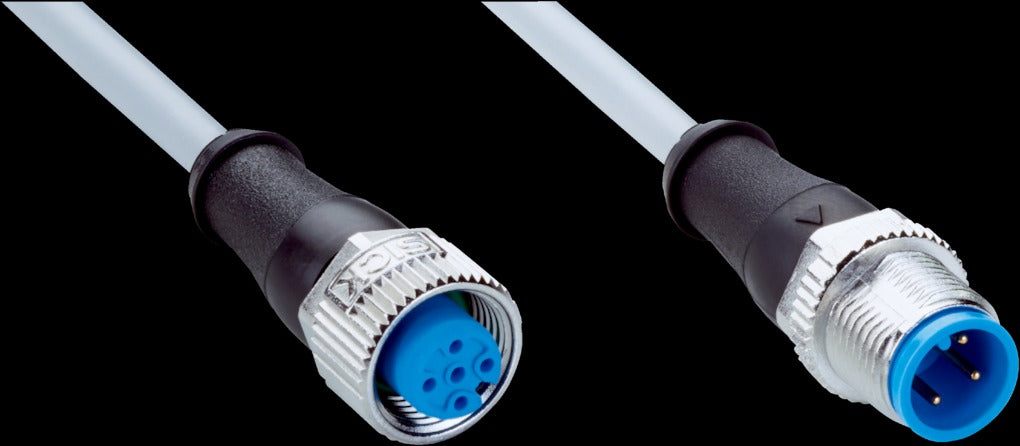

SICK Connectors and cable assemblies: Other connectors and cables YF2A14-C50UJ2M2A14

SAS00006052

Connection type head A Male connector, M12, 4-pin, straight, A-coded
Connection type head B Female connector, M12, 4-pin, straight
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 0.5 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Gray
Cable diameter 4.5 mm
Conductor cross section 0.34 mm²
