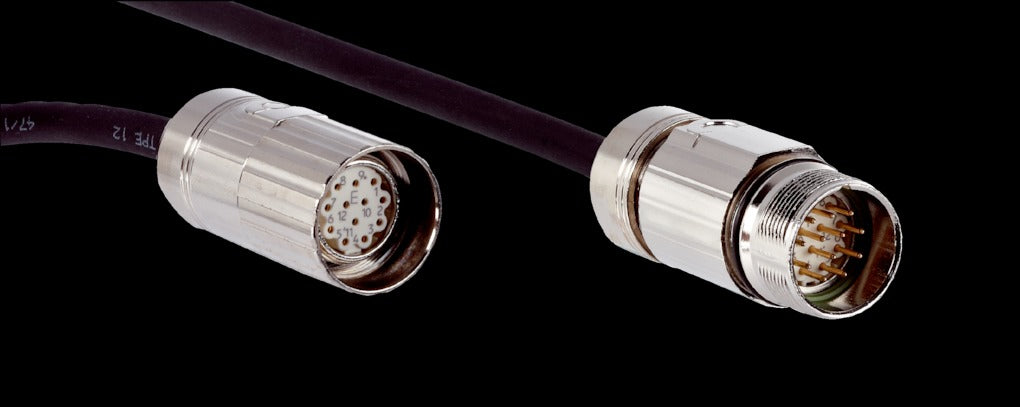

SICK Connectors and cable assemblies: Sensor/actuator cable DSL-M2312-G30MMA3

SAS00006211

Connection type head A Female connector, M23, 12-pin, straight
Connection type head B Male connector, M12, 12-pin, straight
Locking nut material Zinc die-cast, nickel-plated
Cable 30 m, 12-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 7.8 mm
Conductor cross section 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm²
Shielding Shielded
