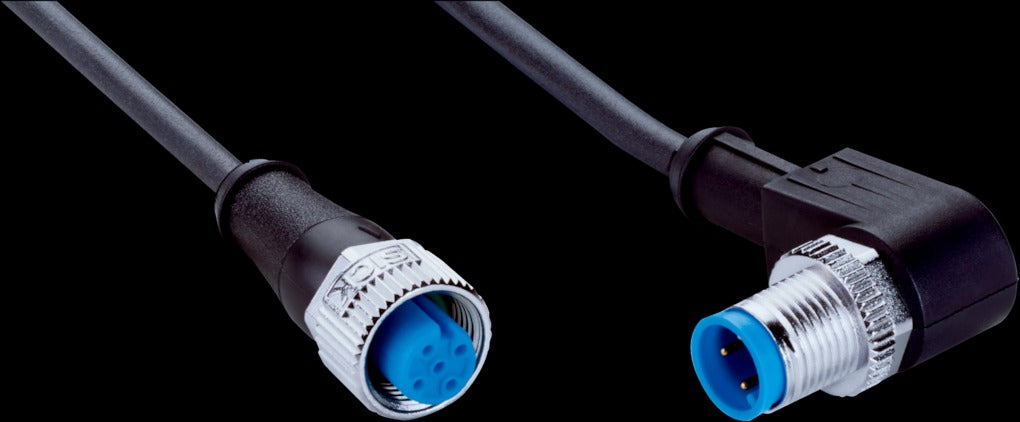

SICK Connectors and cable assemblies: Sensor/actuator cable YF2A14-075UB3N2A14

SAS00006296

Connection type head A Female connector, M12, 4-pin, straight, A-coded
Connection type head B Male connector, M12, 4-pin, angled, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 7.5 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.5 mm
Conductor cross section 0.34 mm²
Shielding Unshielded
