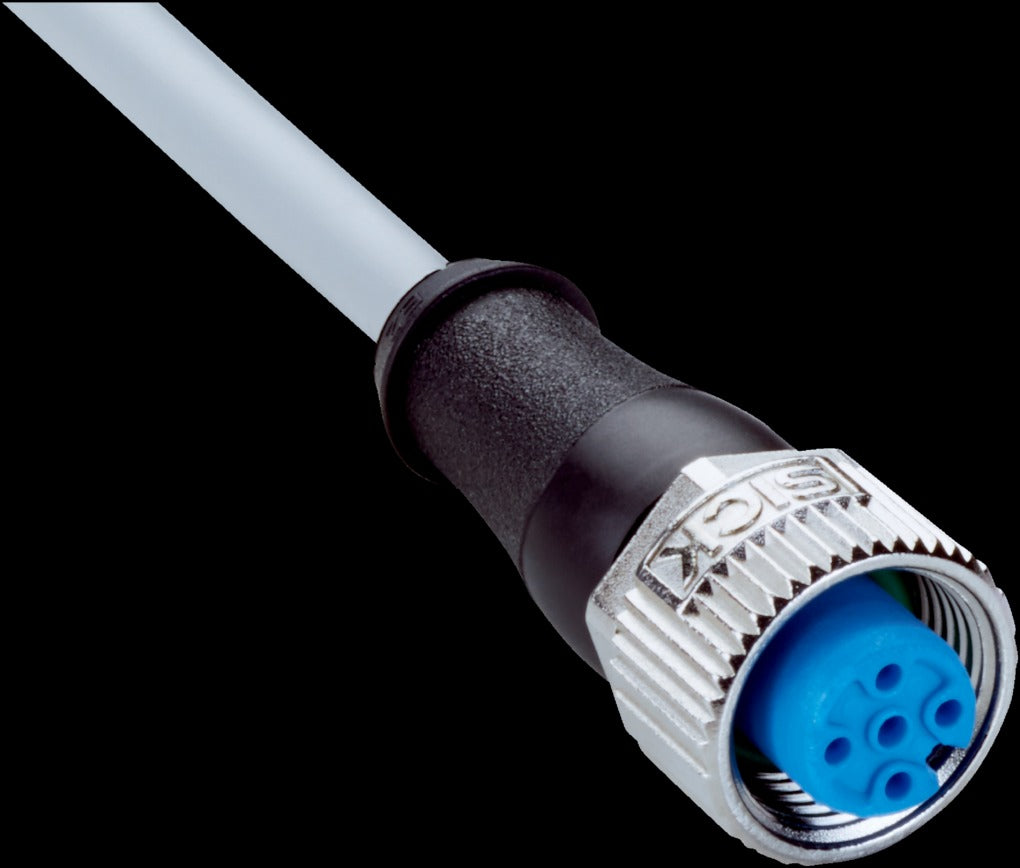

SICK Connectors and cable assemblies: Sensor/actuator cable YF2A24-050VB4XLEAX

SAS00005957

Connection type head A Female connector, M12, 4-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 4-wire, PVC
Jacket material PVC
Jacket color Gray
Cable diameter 5.3 mm
Conductor cross section 0.34 mm²
