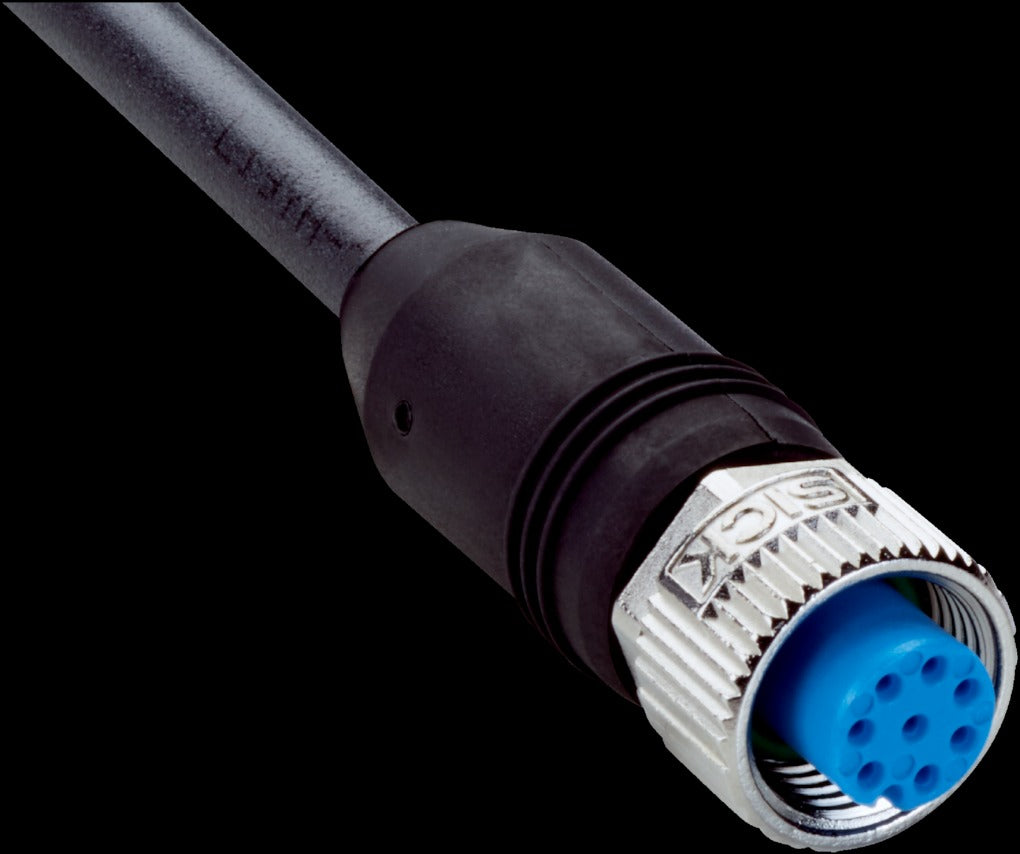

SICK Connectors and cable assemblies: Sensor/actuator cable YF2A28-015UA6XLEAX

SAS00005976

Connection type head A Female connector, M12, 8-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 1.5 m, 8-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 7 mm
Conductor cross section 0.25 mm²
