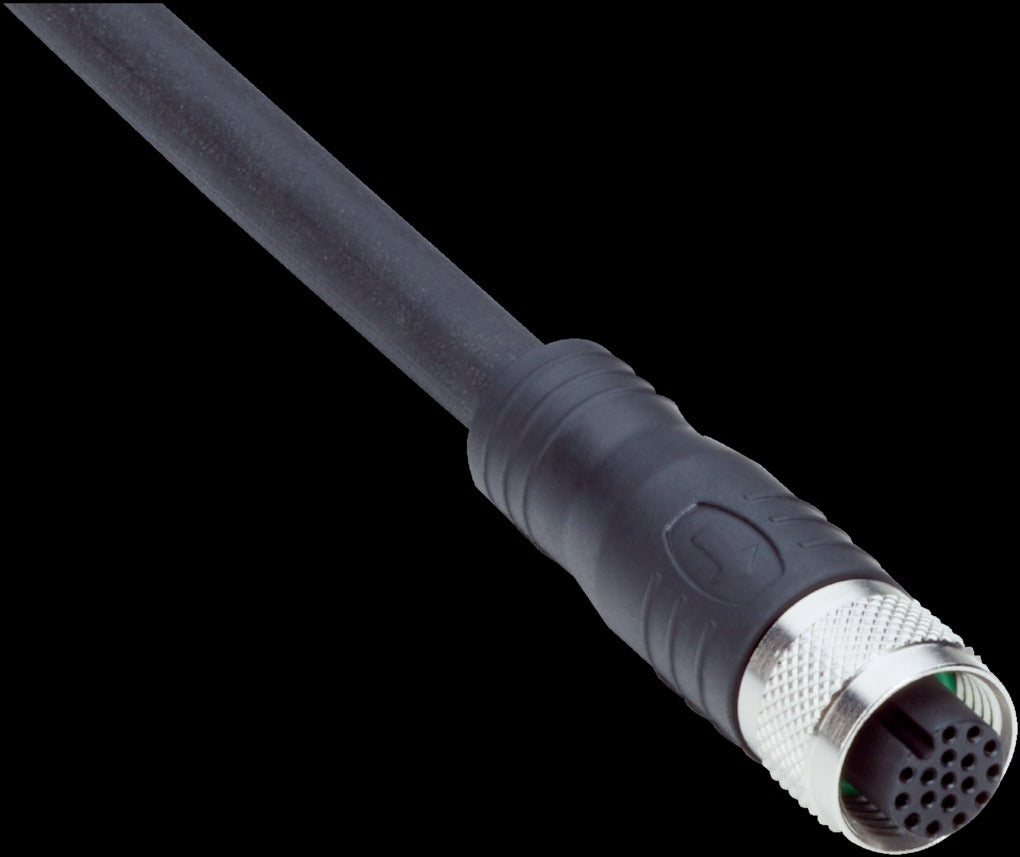

SICK Connectors and cable assemblies: Sensor/actuator cable YF2A2D-050UV2XLEAX

SAS00005599

Connection Specifications

Connection type head A Female connector, M12, 17-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.4 Nm
Cable 5 m, 17-wire, PUR
Jacket material PUR
Jacket color Black
Cable diameter 7.5 mm
Conductor cross section 0.14 mm²
