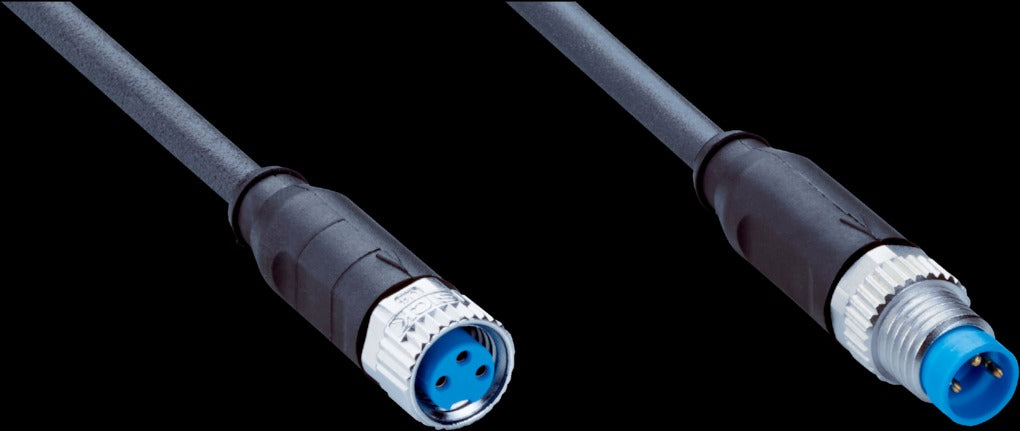

SICK Connectors and cable assemblies: Sensor/actuator cable YF8U13-C15UA1M8U13

SAS00006367

Connection type head A Female connector, M8, 3-pin, straight, A-coded
Connection type head B Male connector, M8, 3-pin, straight, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated (female connector), Nickel-plated brass (male connector)
Seal material FKM
Tightening torque 0.4 Nm
Width across flats 9
Cable 0.15 m, 3-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.1 mm
Conductor cross section 0.25 mm²
