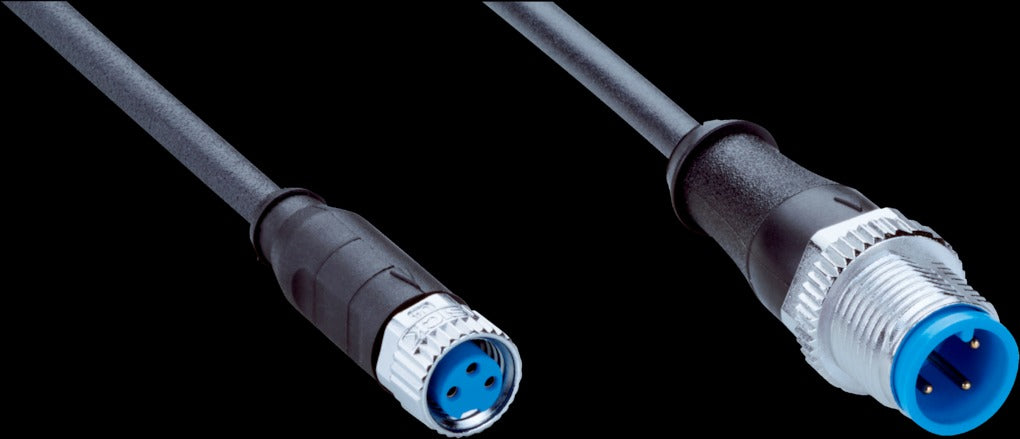

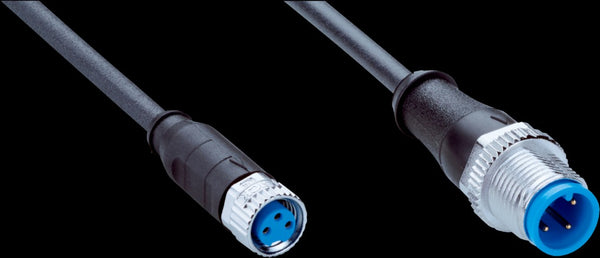

SICK Connectors and cable assemblies: Sensor/actuator cable YF8U13-C60UA1M2A13

SAS00006056

Connection type head A Female connector, M8, 3-pin, straight, A-coded
Connection type head B Male connector, M12, 3-pin, straight, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.4 Nm (M8), 0.6 Nm (M12)
Width across flats 9 (M8), 13 (M12)
Cable 0.6 m, 3-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.1 mm
Conductor cross section 0.25 mm²
