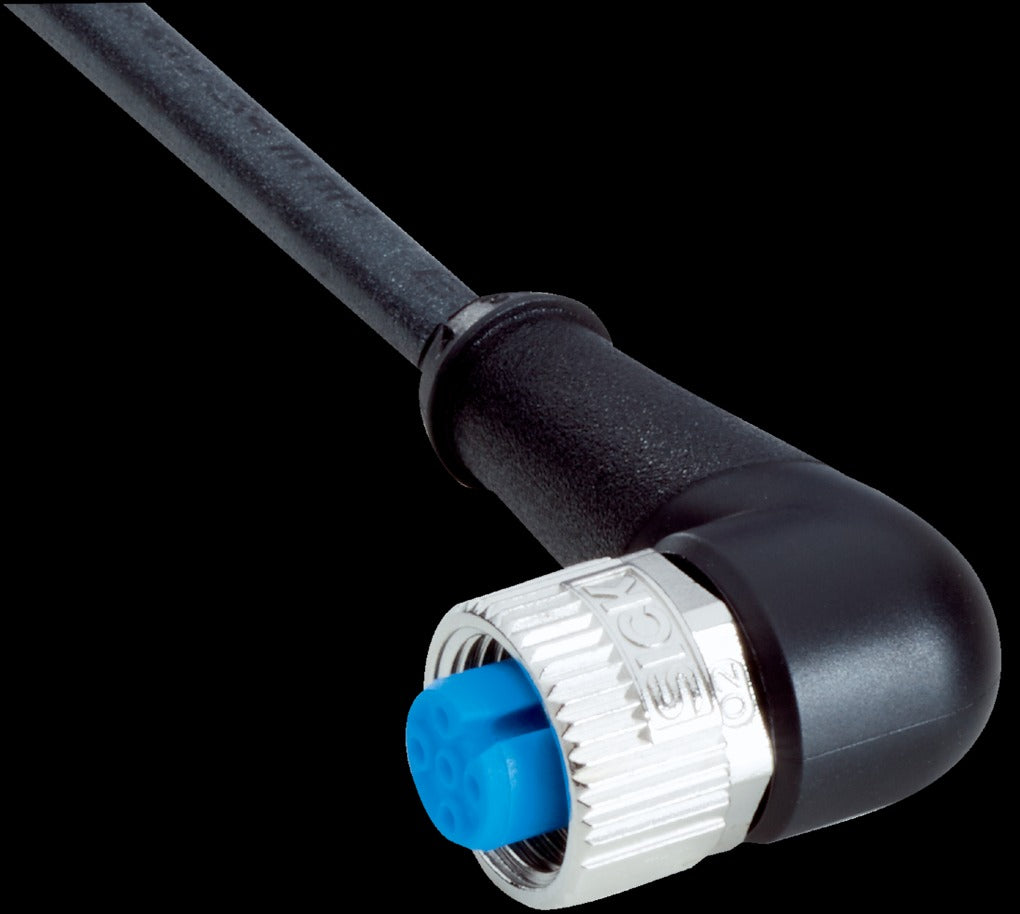

SICK Connectors and cable assemblies: Sensor/actuator cable YG2A13-050UB1XLEAX

SAS00005749

Product Specifications

Connection type head A Female connector, M12, 3-pin, angled, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 3-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.1 mm
Conductor cross section 0.34 mm²
Shielding Unshielded

Product Specifications

Connection type head A Female connector, M12, 3-pin, angled, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 3-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.1 mm
Conductor cross section 0.34 mm²
Shielding Unshielded
