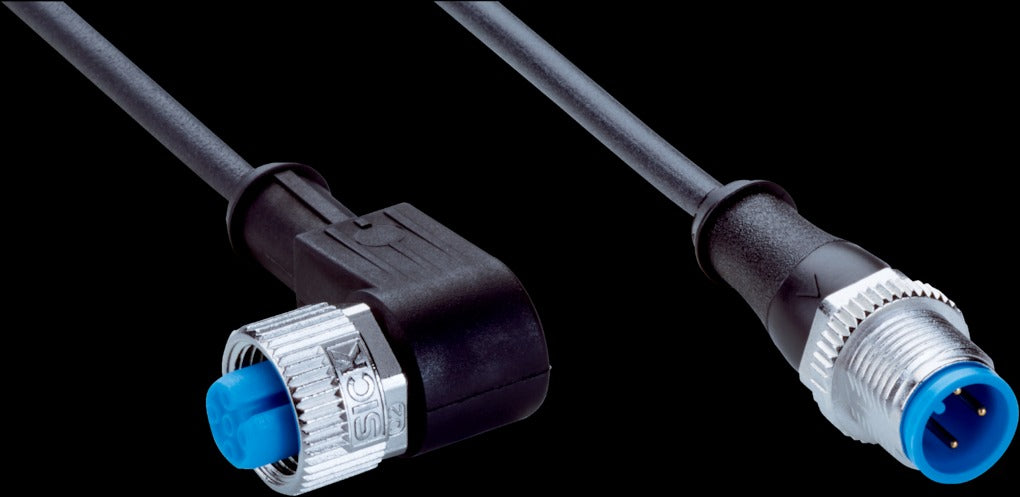

SICK Connectors and cable assemblies: Sensor/actuator cable YG2A13-C60UB1M2A13

SAS00006349

Connection type head A Female connector, M12, 3-pin, angled, A-coded
Connection type head B Male connector, M12, 3-pin, straight, A-coded
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 0.6 m, 3-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 4.1 mm
Conductor cross section 0.34 mm²
