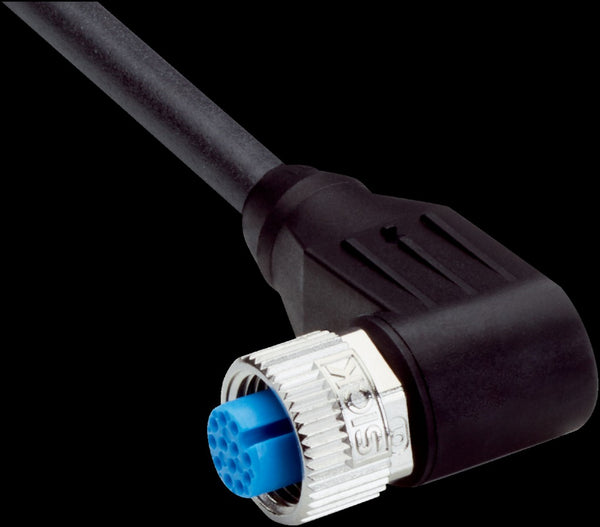

SICK Connectors and cable assemblies: Sensor/actuator cable YG2A2B-050VH2XLEAX

SAS00006101

Connection type head A Female connector, M12, 12-pin, angled, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 12-wire, PVC
Jacket material PVC
Jacket color Gray
Cable diameter 6.5 mm
Conductor cross section 0.14 mm²
