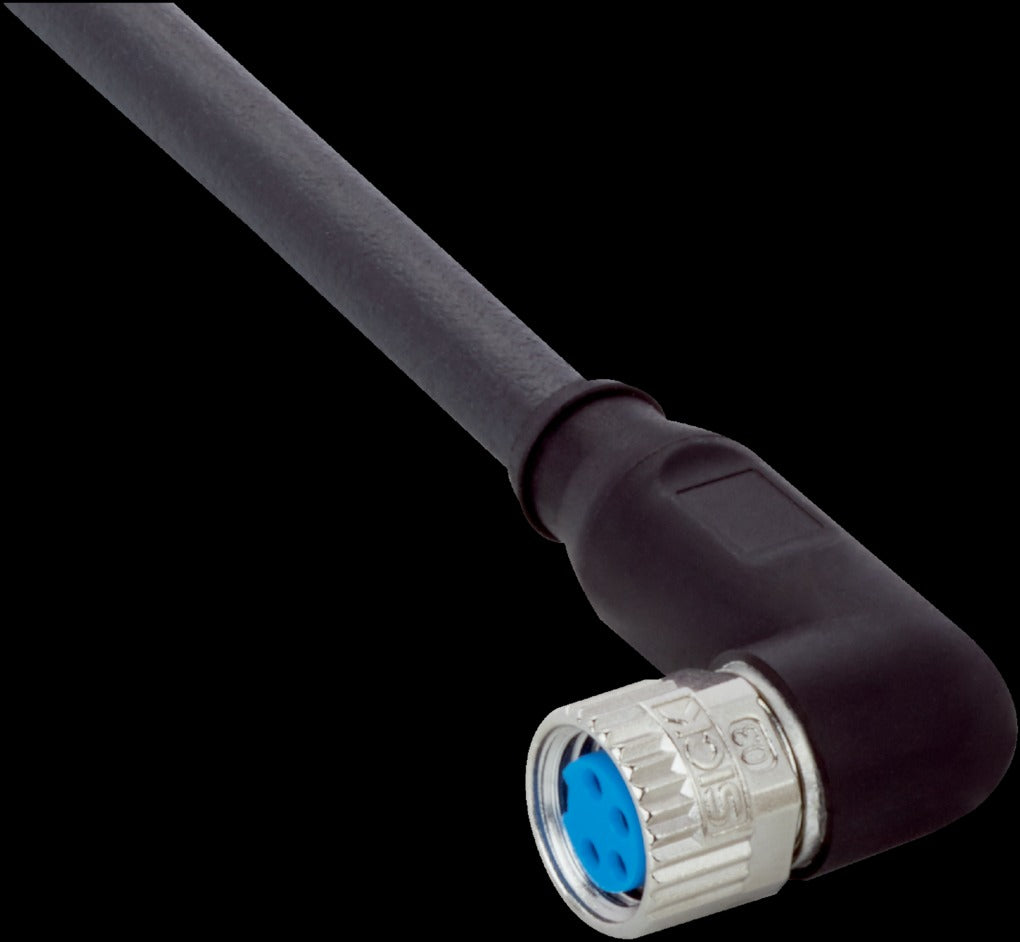

SICK Connectors and cable assemblies: Sensor/actuator cable YG8U24-100UB4XLEAX

SAS00006073

Connection type head A Female connector, M8, 4-pin, angled, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Seal material FKM
Tightening torque 0.4 Nm
Width across flats 9
Cable 10 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Black
Cable diameter 5.3 mm
Conductor cross section 0.34 mm²
Shielding Shielded
