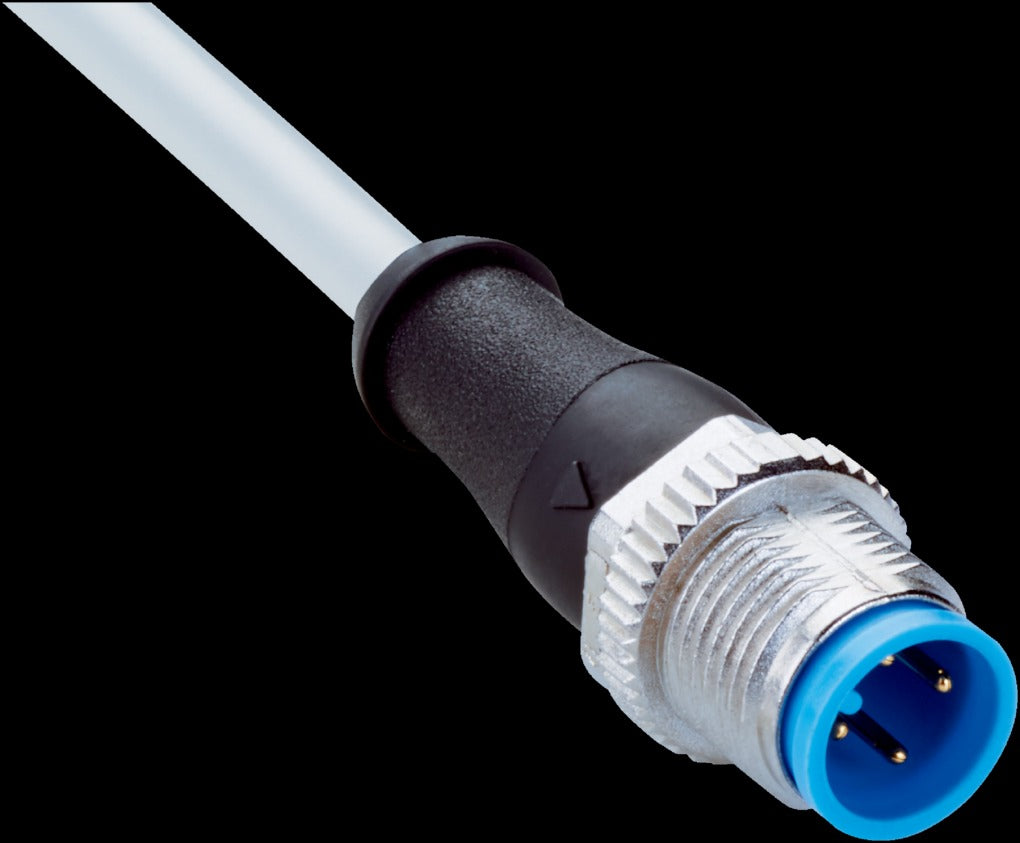

SICK Connectors and cable assemblies: Sensor/actuator cable YM2A14-050VB3XLEAX

SAS00005920

Product Specifications

Connection type head A Male connector, M12, 4-pin, straight, A-coded
Connection type head B Flying leads
Locking plug connector Screw connection
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 5 m, 4-wire, PVC
Jacket material PVC
Jacket color Gray
Cable diameter 5 mm
Conductor cross section 0.34 mm²
Shielding Unshielded
