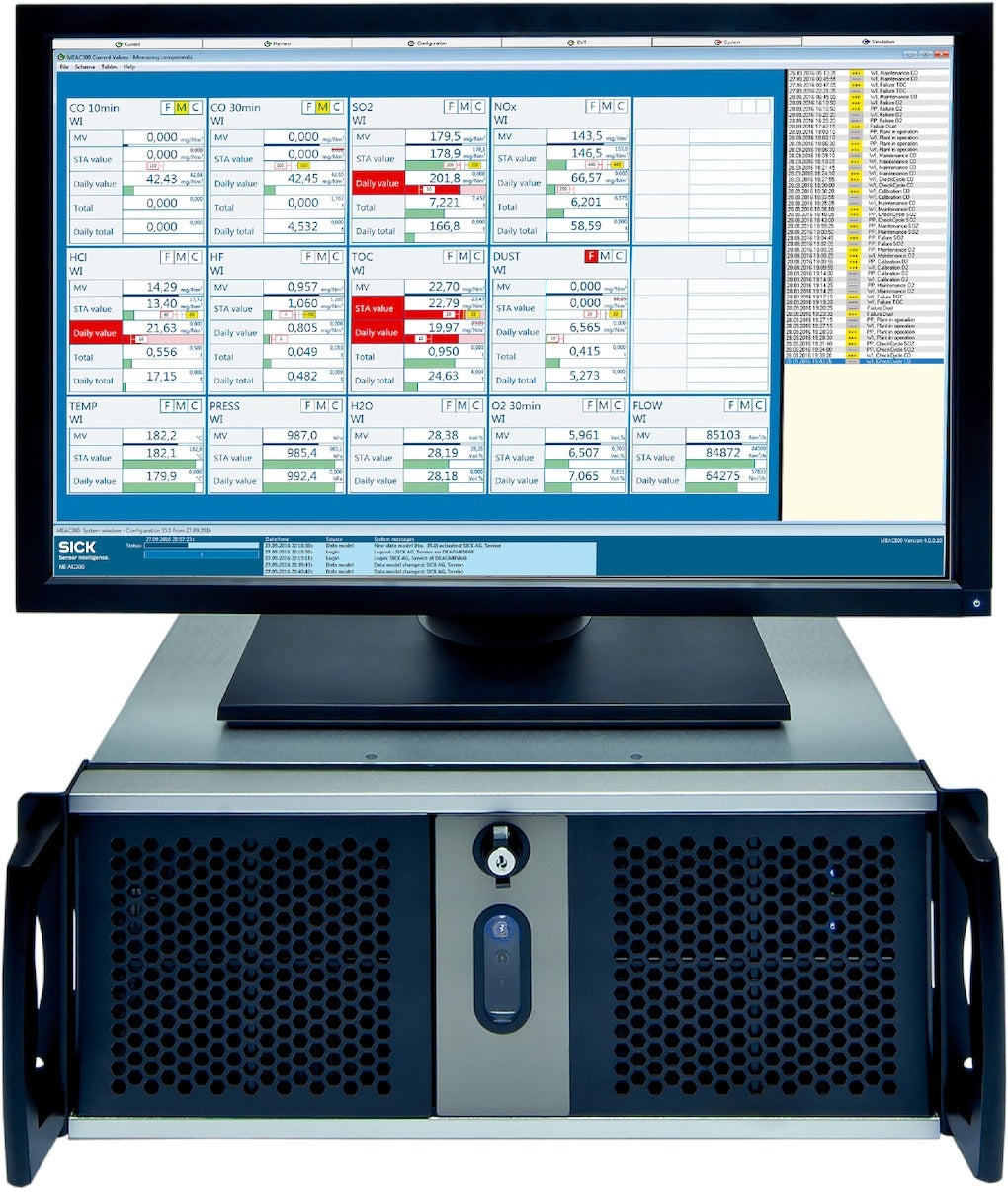

SICK Digital analyzer solutions: MEAC300 System MEAC300 EPW

SAS00006579

Software Modules “European Power and Waste” evaluation software, version 4.x (parameterization required)
Analog data acquisition software (Data acquisition unit (DAE) or field module (FM) required)
Modbus RTU/TCP data acquisition software master and slave
OPC DA 2.0 client data acquisition software (option)
Remote access for remote PC (option)
Central system software via TCP for central PC (option)
SICK Remote Service remote maintenance (option)
Process image display software (Configuration required)
Process display (option)
Manual input (option)
MEx automated protocol export to MS Excel (option; Excel template and configuration required)
MEx configurator (option)
QAL3 master CUSUM (option)
GHG master MVO (option)
Redundancy system software with automated switching (option)
Workplace server system software (option)
E-mail alerts (option)
Analog data output software (Data acquisition unit (DAE) or field module (FM) required)
Modbus RTU/TCP data output software master and slave (PROFIBUS DP slave via optional converter)
OPC DA 2.0 client data output software (option)
Multi-display (Optional; max. 5 windows)
Menu Languages German, English, French
Conformities EN 14181 (QAL2)
2010/75/EU (Annex V)
2010/75/EU (Annex VI)
Electrical Safety CE
Calculation Interval 5 s
