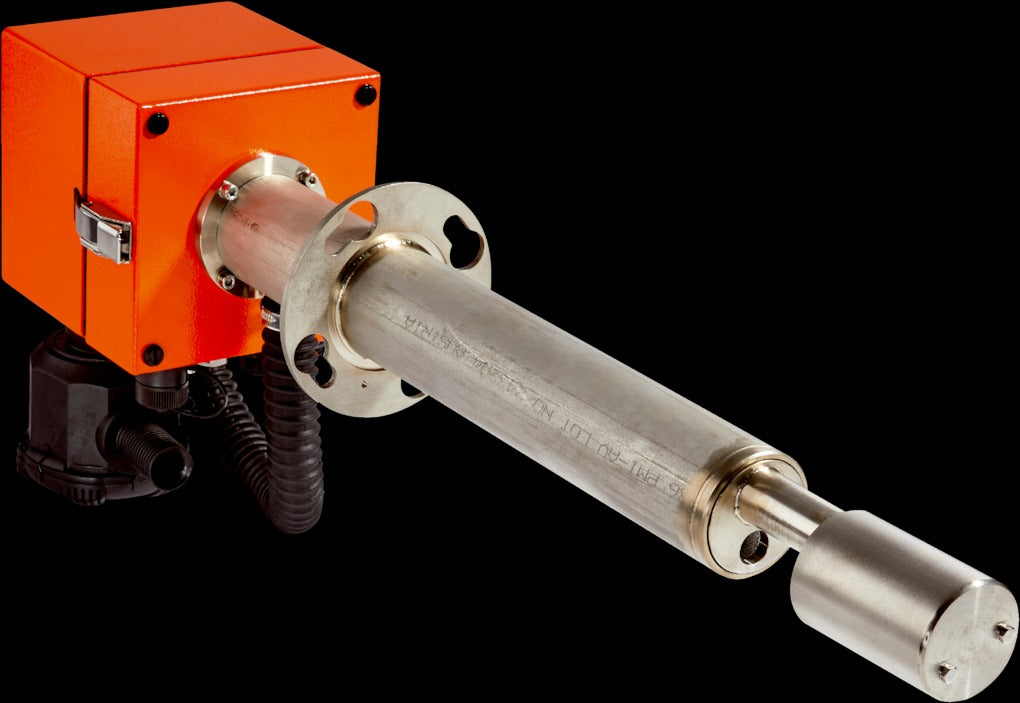

SICK Dust Measuring Devices: DUSTHUNTER SP30 System DUSTHUNTER SP30

SAS00006567

Measured values Scattered light intensity, dust concentration (after gravimetric comparison measurement)
Measurement principles Scattered light forward
Spectral range 640 nm ... 660 nm
Laser, protection class 2, power < 1 mW
Measuring ranges Scattered light intensity: 0 ... 7.5 SI / 0 ... 3,000 SI
Measuring ranges freely selectable; nine measuring ranges pre-configured (0 ... 7.5/15/45/75/150/225/375/1,000/3,000 SI)
Process temperature –40 °C ... +220 °C
Process pressure –50 hPa ... 10 hPa
Process gas humidity Non-condensing
Duct diameter ≥ 150 mm
Ambient temperature –40 °C ... +60 °C
Electrical safety CE
Enclosure rating IP65
Nominal length 180 mm
Weight ≤ 2.7 kg
Mounting Flange with tube
Energy supply Power consumption: ≤ 4 W
