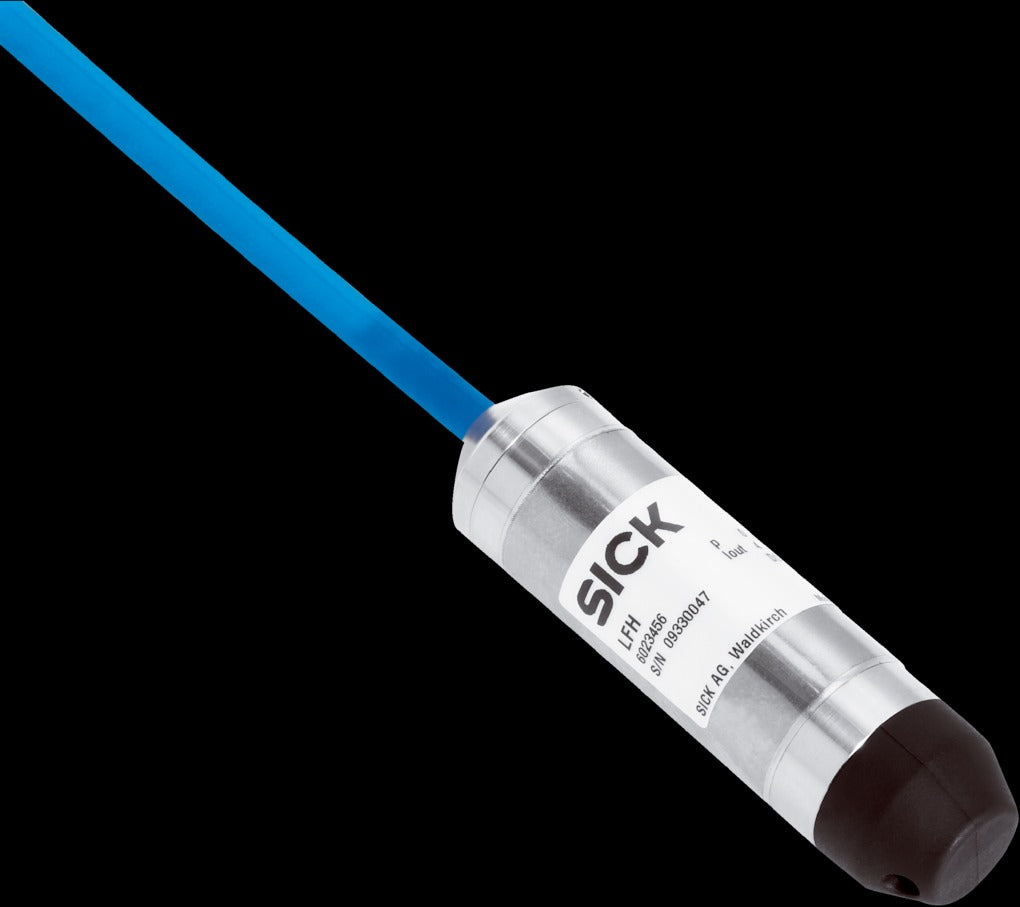

SICK Pressure sensors: LFH LFH-EBX25G1AF25SZ0

SAS00007558

Medium Fluids
Pressure type Gauge pressure
Pressure unit bar
Measuring range 0 bar ... 0.25 bar
Process temperature –10 °C ... +85 °C
Maximum ohmic load RA 4 mA ... 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm]
0 V ... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm
0 V ... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm
Output signal 4 mA ... 20 mA, 2-wire
Length of cable 25 m
Cable material FEP
