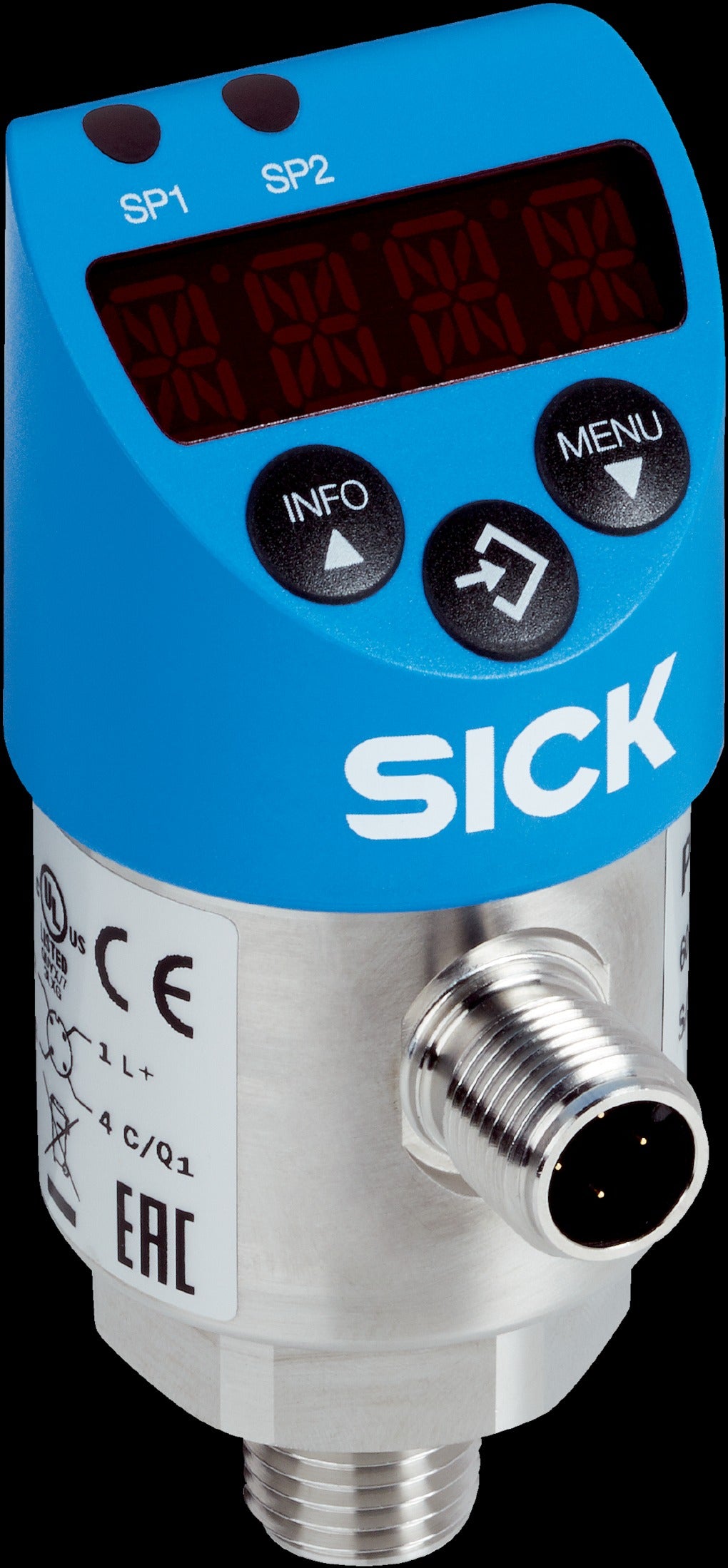

SICK Pressure sensors: PBS plus PBS2-RBX60SG1SSDQ5A0Z

SAS00011493

Attribute Value
Medium Liquid, gaseous
Pressure type Gauge pressure
Pressure unit bar
Measuring range 0 bar ... 25 bar
Overpressure safety 2-fold
Process temperature –20 °C ... +100 °C, +135 °C for max. 1 h
Pressure port 3.5 mm Standard
Housing material Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC
Connection type Round connector M12 x 1, 5-pin
Supply voltage 15 V DC ... 35 V DC
Power consumption 45 mA (for configurations without analog output signal)
70 mA (for configurations with analog output signal)
Total current consumption Max. 600 mA (including switching current)
Weight sensor Approx. 220 g
Seal NBR seal installed, FPM/FKM seal included
