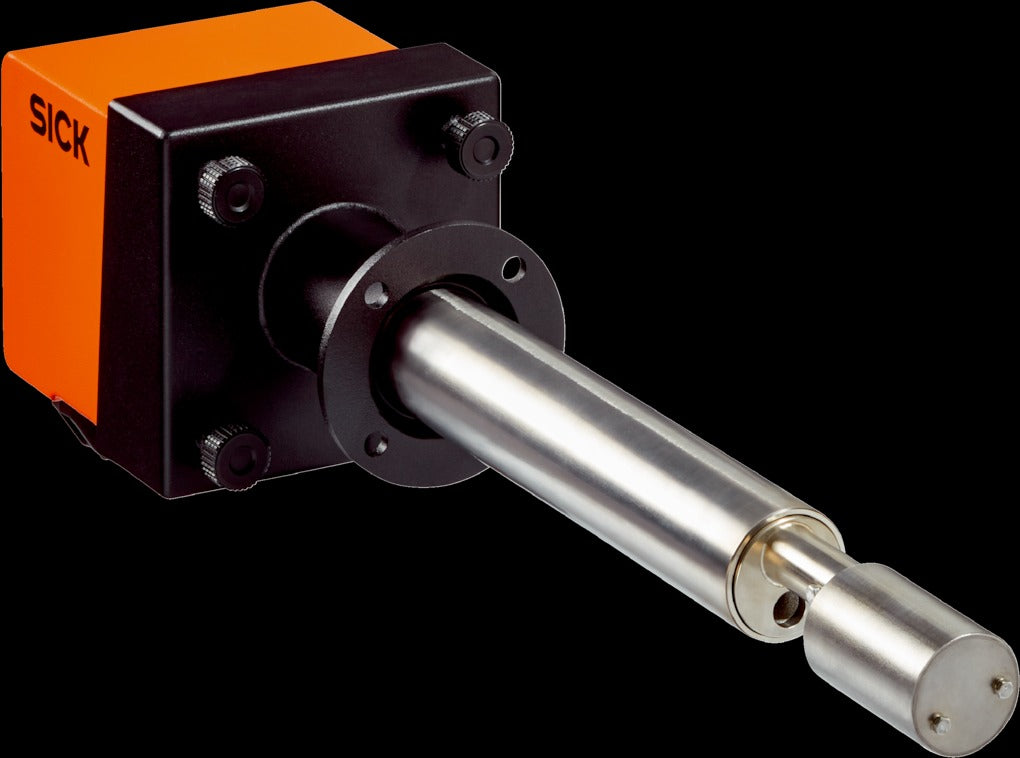

SICK Dust Measuring Devices: DUSTHUNTER SP100 System DUSTHUNTER SP100 Ex-3K

Write a review
Rs. 0.00

Description With integrated purge air unit
Measured Values Scattered light intensity, dust concentration (after gravimetric comparison measurement)
Performance-Tested Measurands Scattered light intensity
Measurement Principles Scattered light forward
Spectral Range 640 nm ... 660 nm (Laser, protection class 2, power < 1 mW)
Measuring Ranges Dust concentration: 0 ... 5 mg/mĀ³ / 0 ... 500 mg/mĀ³ (Higher measuring ranges on request)
Model With integrated purge air unit
Dimensions (W x H x D) 173 mm x 268 mm x 517 mm (for details see dimensional drawings)
Nominal Length 180 mm
Weight ā‰¤ 5 kg
Mounting Mounting flange, Tri-Clamp
Energy Supply Voltage: 24 V DC
Power Consumption ā‰¤ 30 W
