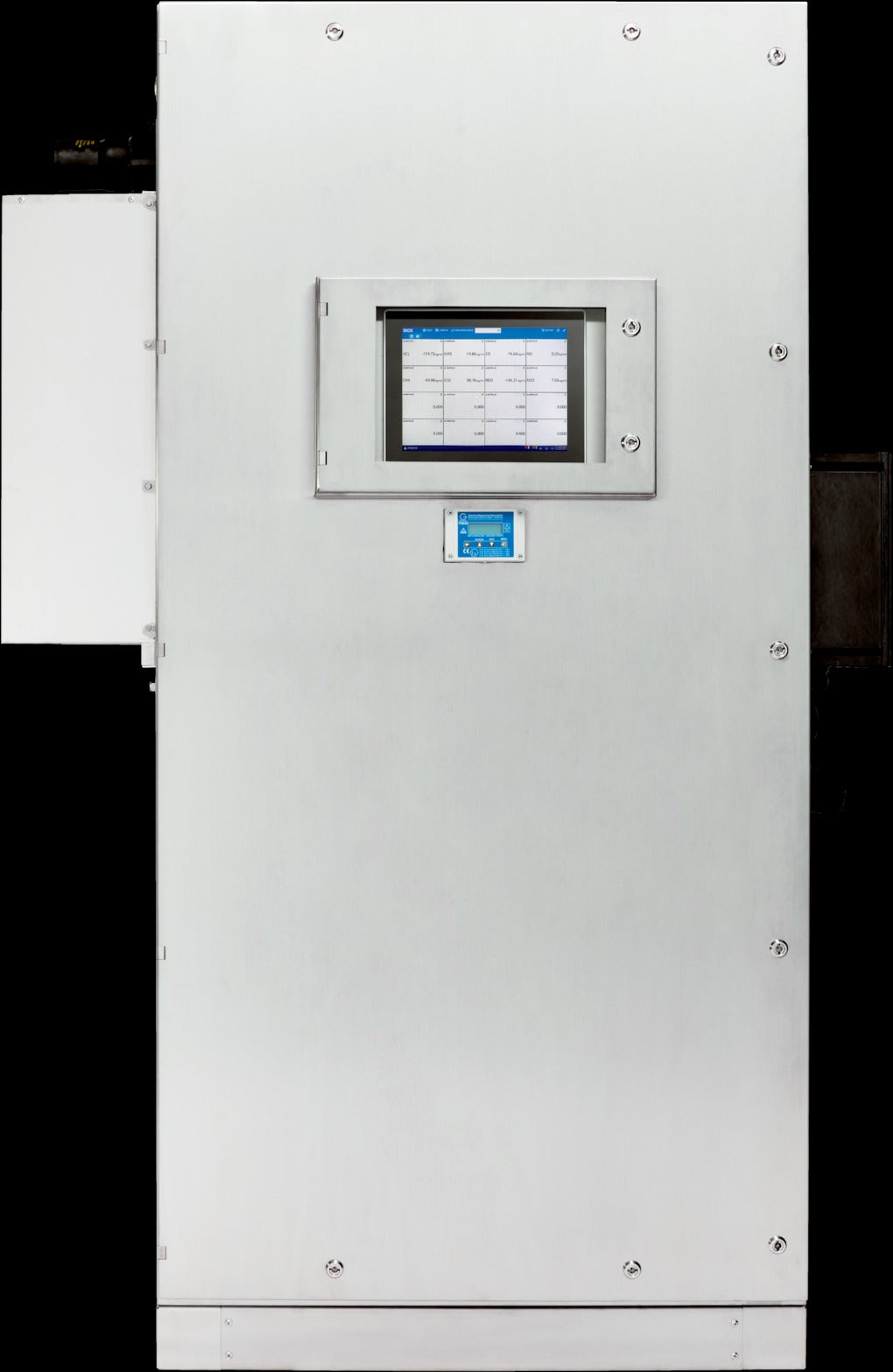

SICK Gas Analyzers: MCS200HW System MCS200HW Ex

Write a review
Rs. 0.00

Measured values CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
Performance-tested measurands CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
Maximum number of measurands 12
Measurement principles Interference filter correlation, Gas filter correlation
Length of measuring path 8.48 m
Gas flow rate 200 l/h ... 400 l/h
Dimensions (W x H x D) Analyzer cabinet: 1,448 mm x 2,160 mm x 652 mm (for details see dimensional drawings)
Weight Analyzer cabinet: Approx. 400 kg
Material in contact with media Stainless steel 304, Option: GFRP, painted sheet steel
Energy supply Voltage: 115 V AC, Ā± 10 % / 230 V AC, Ā± 10 %
Frequency: 50 Hz / 60 Hz
Power consumption Analyzer: ā‰¤ 1,000 VA
Sample gas line, heated: ā‰¤ 95 VA/m
Gas sampling unit: ā‰¤ 450 VA
Heated probe tube: ā‰¤ 200 VA ... ā‰¤ 600 VA
