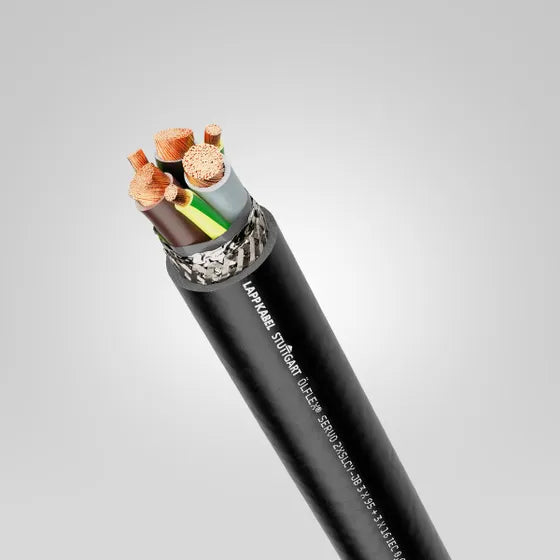

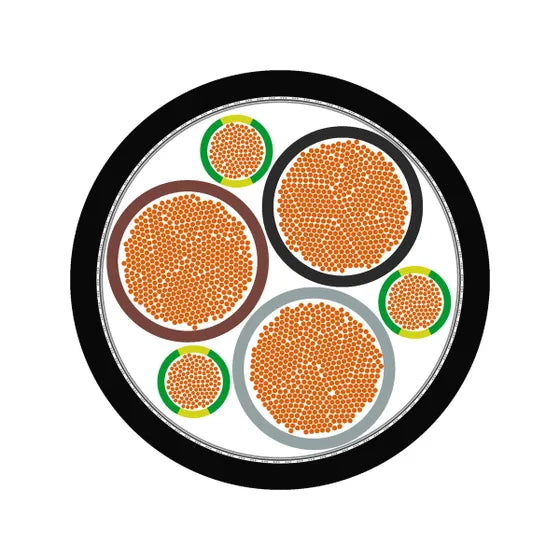

LAPP ÖLFLEX® SERVO 2XSLCY-JB 3X120+3G16

PRA000036020

Brand ÖLFLEX®
Product Type Motor Connection Cable
Weight 5663 kg/km
Copper Index 4836,000 kg/km
Copper Index (lb) 32496.589 lb/10,000 ft
Nominal Voltage U0/U: 0,6/1 kV AC rms according to IEC
Nominal Voltage (Power Cores) U0/U: 0,6/1 kV AC rms according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
Test Voltage 4 kV
Test Voltage (Conductor/Conductor) 4 kV
Test Voltage (Core/Screening) 4 kV
Current Rating According to VDE 0298-4
Short-Circuit Temperature [5s] 250 °C
