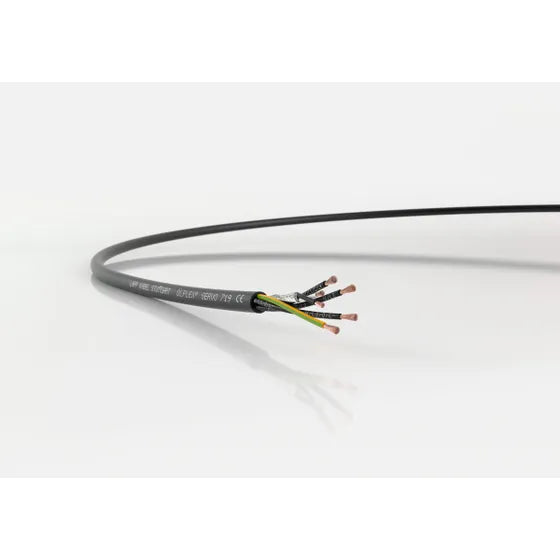

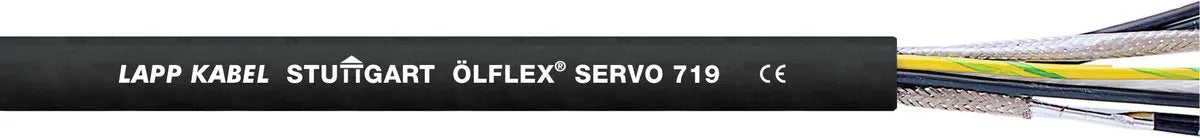

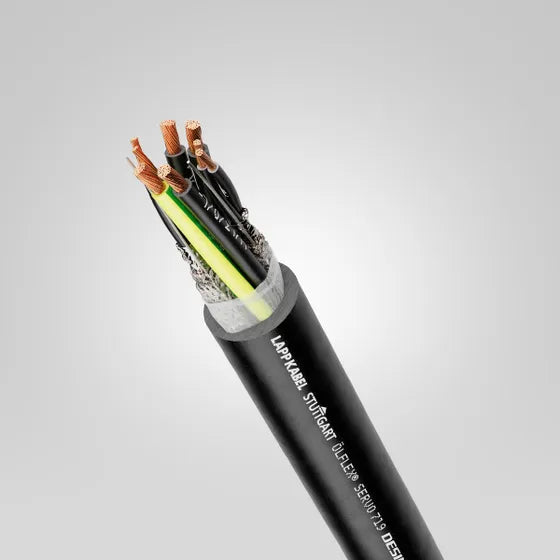

LAPP ÖLFLEX® SERVO 719 4G2,5+2x(2x1)

PRA000036039

Brand ÖLFLEX®
Product Type Servo cable
Weight 286 kg/km
Copper Index 159,700 kg/km
Copper Index (lb) 1,073,020 lb/10,000 ft
Nominal Voltage U0/U: 0.6/1 kV AC rms according to IEC
Nominal Voltage Power Cores U0/U: 0.6/1 kV AC rms according to IEC
Nominal Voltage Control Cores U0/U: 0.6/1 kV AC rms according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
Test Voltage 4 kV
Current Rating According to VDE 0298-4
