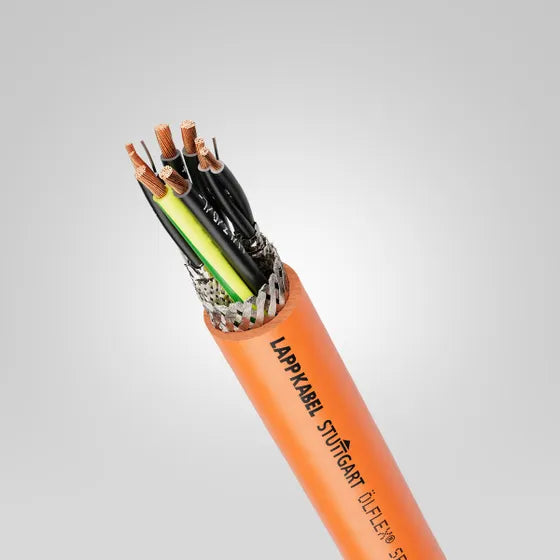

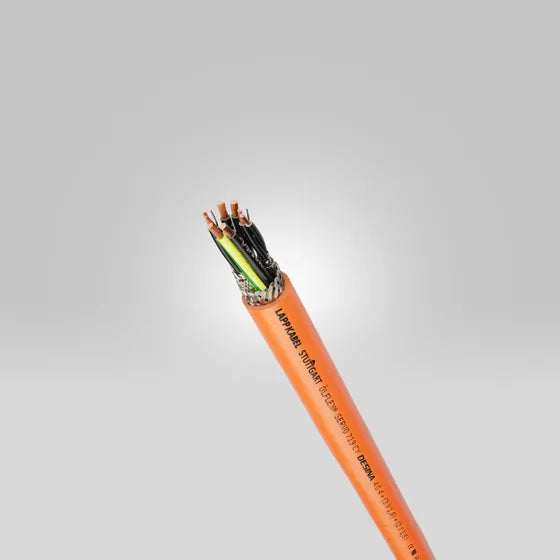

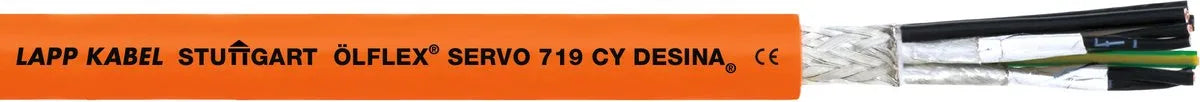

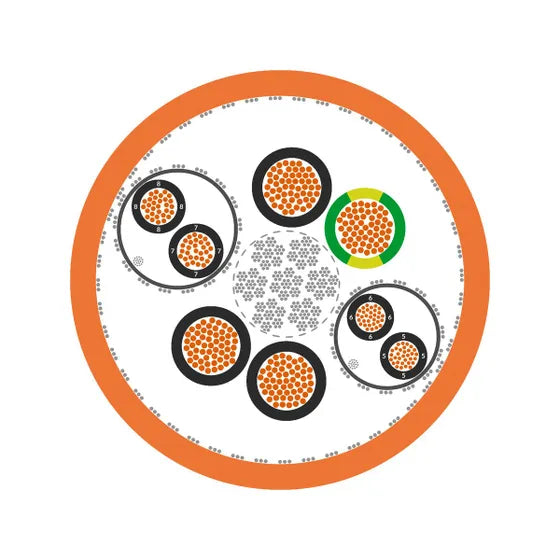

LAPP ÖLFLEX® SERVO 719 CY 4G4+(3x1,0)

PRA000036056

Brand ÖLFLEX®
Product Type Servo cable
Weight 402 kg/km
Copper Index 270,000 kg/km
Copper Index (lb) 1,814.130 lb/10,000 ft
Nominal Voltage U0/U: 0.6/1 kV AC rms according to IEC
Nominal Voltage Power Cores U0/U: 0.6/1 kV AC rms according to IEC
Nominal Voltage Control Cores U0/U: 0.6/1 kV AC rms according to IEC
Rated Voltage 1000 V AC rms according to UL AWM
1000 V AC rms according to cRU AWM
Test Voltage Conductor/Conductor 4 kV
Test Voltage Core/Screening 4 kV
Current Rating According to VDE 0298-4
